Removal [08/2013 - ]

  1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  . Refer to REMOVAL [08/2013 - ] - Step 10
  2. REMOVE LIGHT CONTROL RHEOSTAT
    1. Disengage the 2 claws and remove the light control rheostat.

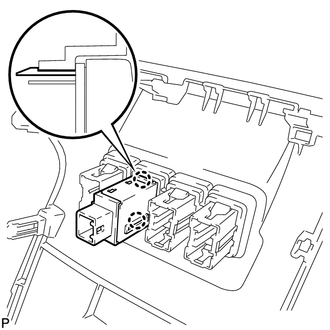

      Fig 1: Identifying Light Control Rheostat Claws
      GTY337959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
