Malfunction in Water Temperature Warning Light [08/2013 - ]: Wiring Diagram

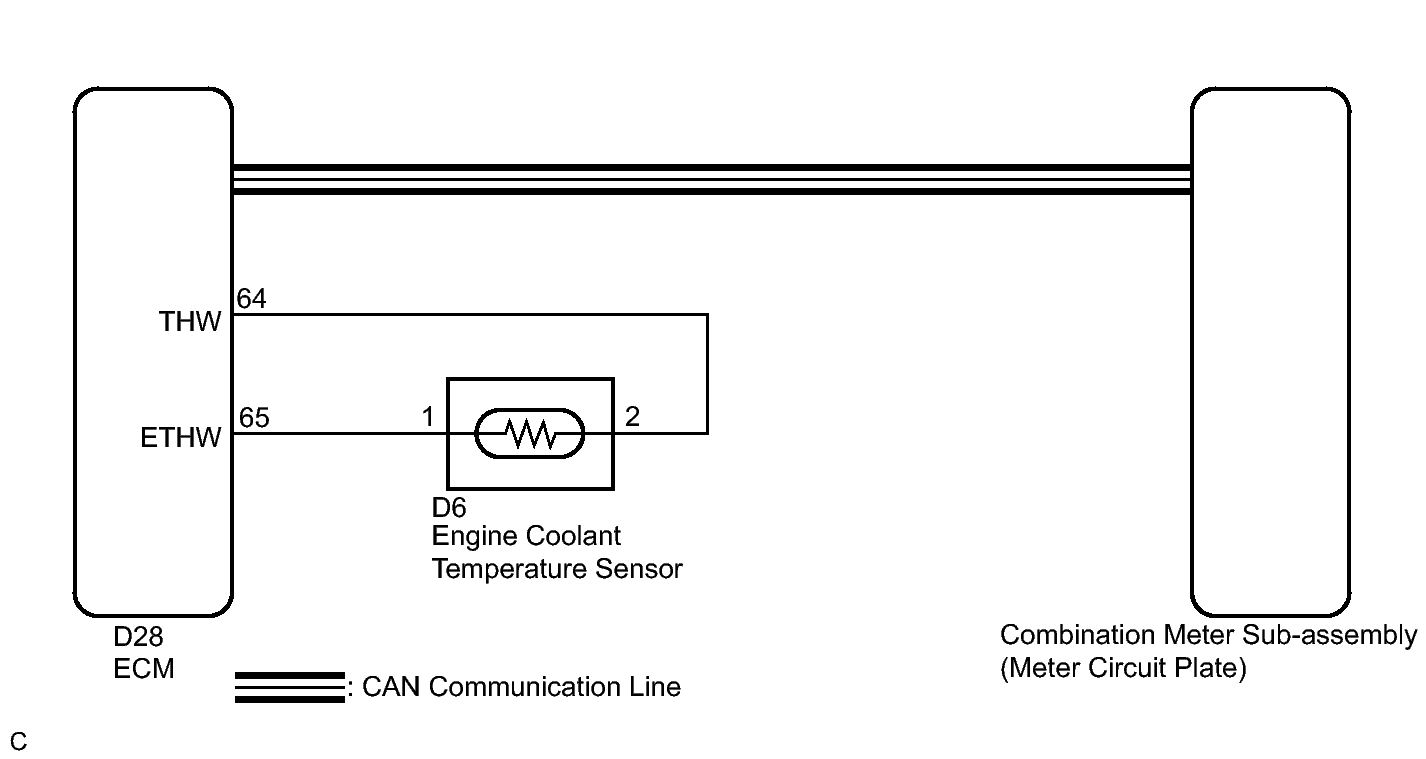

Fig 1: Combination Meter Wiring Diagram

GTY331305

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
