Headlight Dimmer Switch Circuit [08/2013 - ]: Wiring Diagram

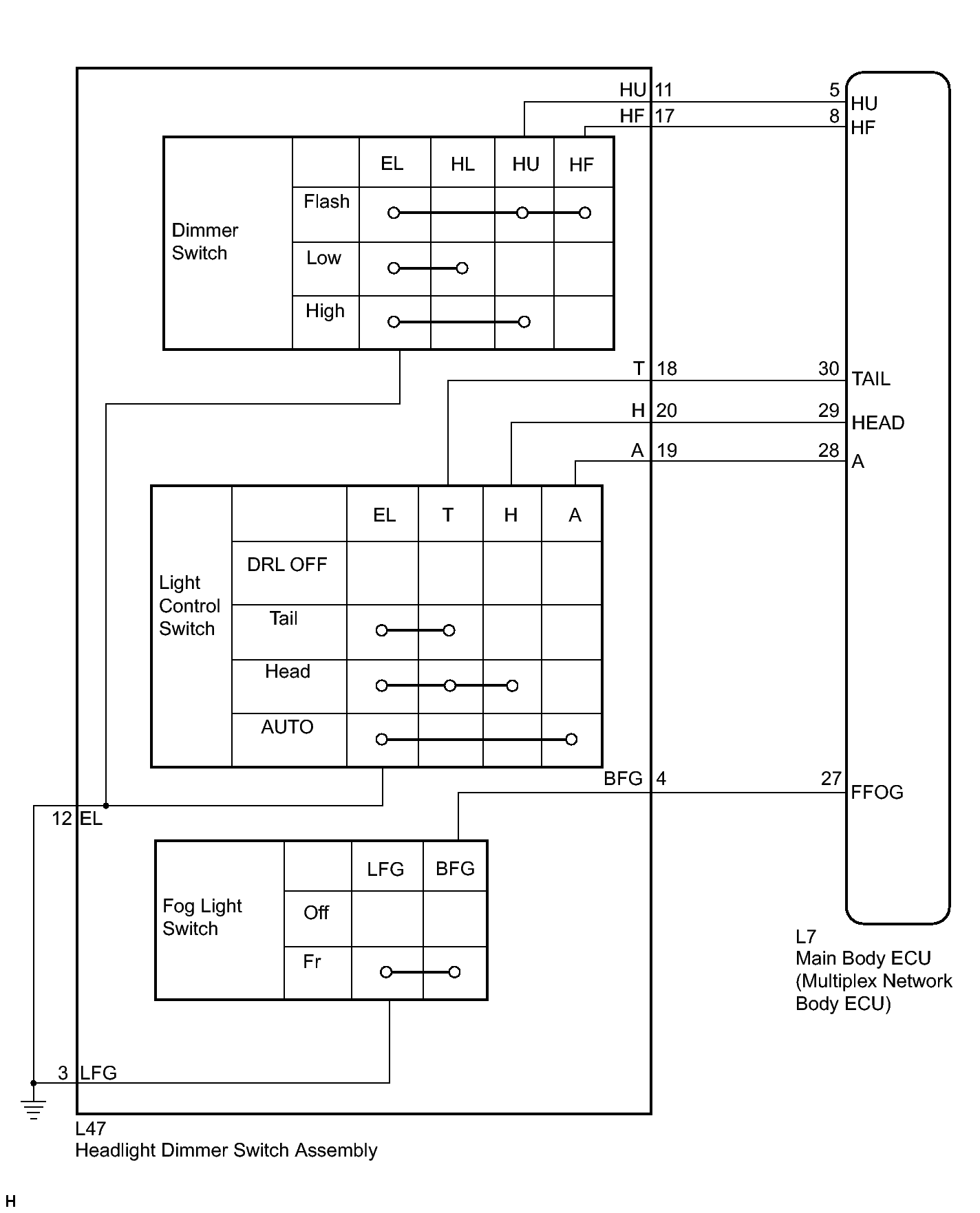

Fig 1: Headlight Dimmer Switch Wiring Diagram

GTY441901

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
