DTC P0A85-123: Hybrid Battery Pack Cooling Fan 1 Control Circuit High [08/2013 - ]: Wiring Diagram

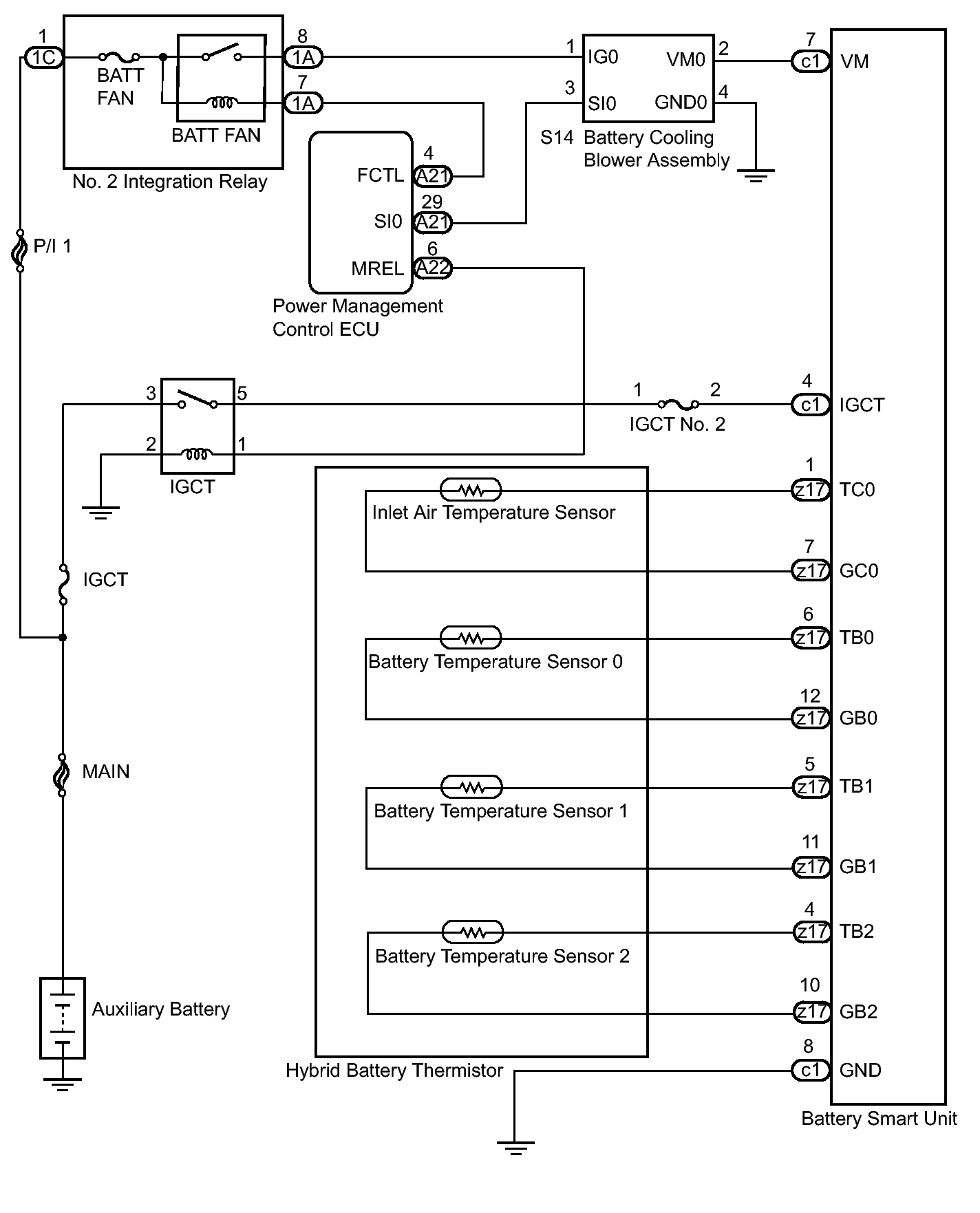

Fig 1: Hybrid Battery Pack Cooling Fan 1 Control Wiring Diagram
GTY436021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
