Removal [08/2013 - ]

REMOVE NO. 1 ROOM LIGHT ASSEMBLY

Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws and remove the No. 1 room light lens.

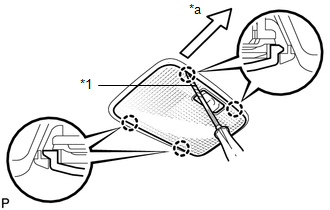

Fig 1: Removing No. 1 Room Light Lens

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Protective Tape
*a	Front

Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws as shown in the illustration and remove the No. 1 room light housing.

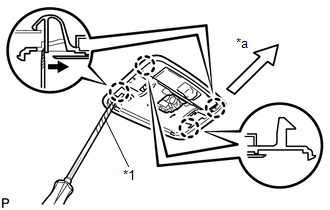

Fig 2: Removing No. 1 Room Light Housing

TEXT IN ILLUSTRATION

*1	Protective Tape
*a	Front

Using a screwdriver, disengage the 4 claws and disconnect the room light switch base from the No. 1 room light housing.

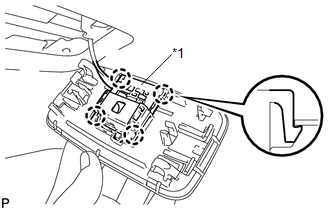

Fig 3: Identifying Room Light Switch Base Claws & Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION

*1 Room Light Switch Base
