DTC U029A-123: Lost Communication with Hybrid Battery Pack Sensor Module [12/2013 - ]: Wiring Diagram

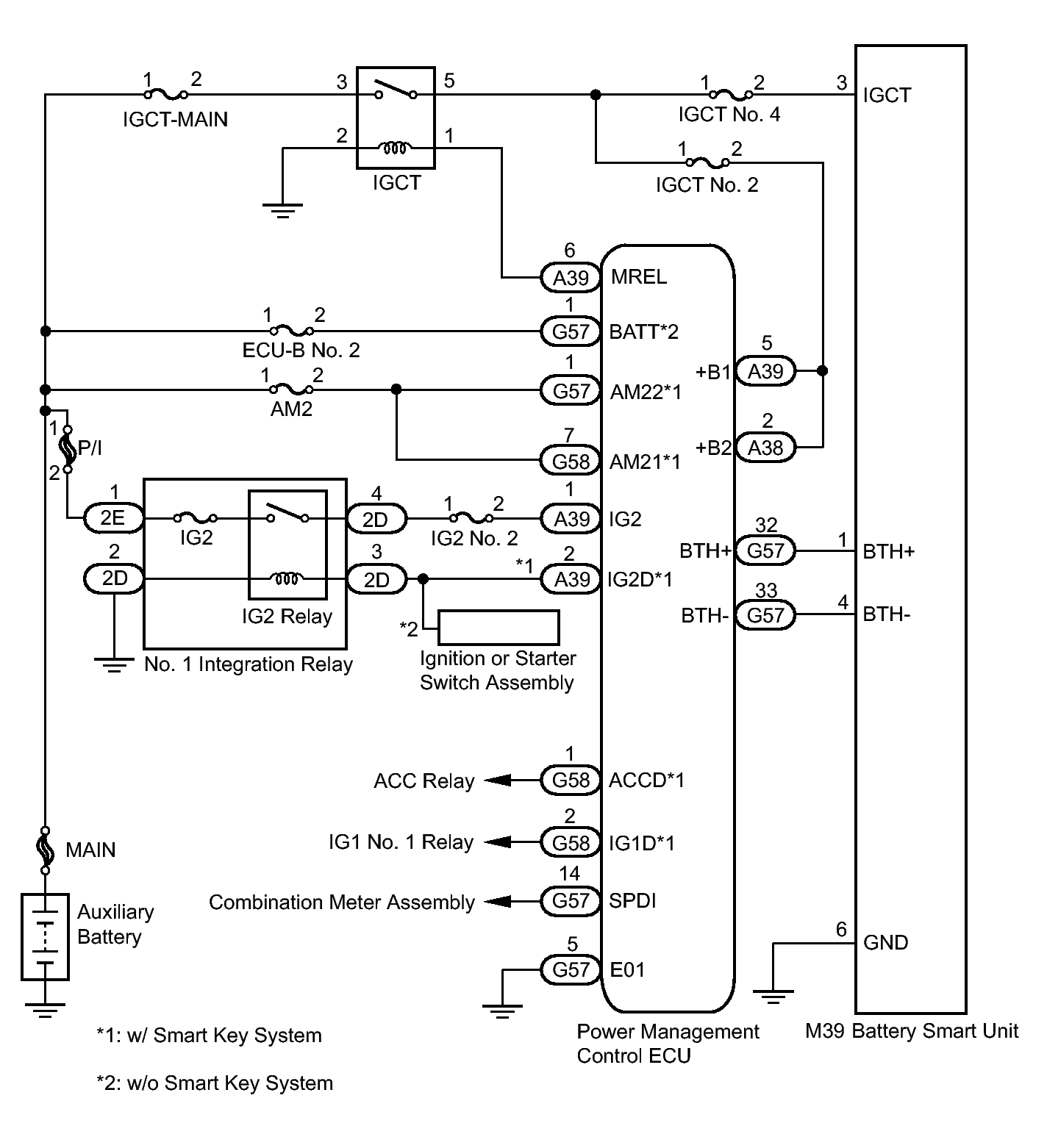

Fig 1: Identifying Hybrid Battery Pack Sensor Module Wiring Diagram
GTY338689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
