Speed Signal Circuit [12/2013 - ]: Wiring Diagram

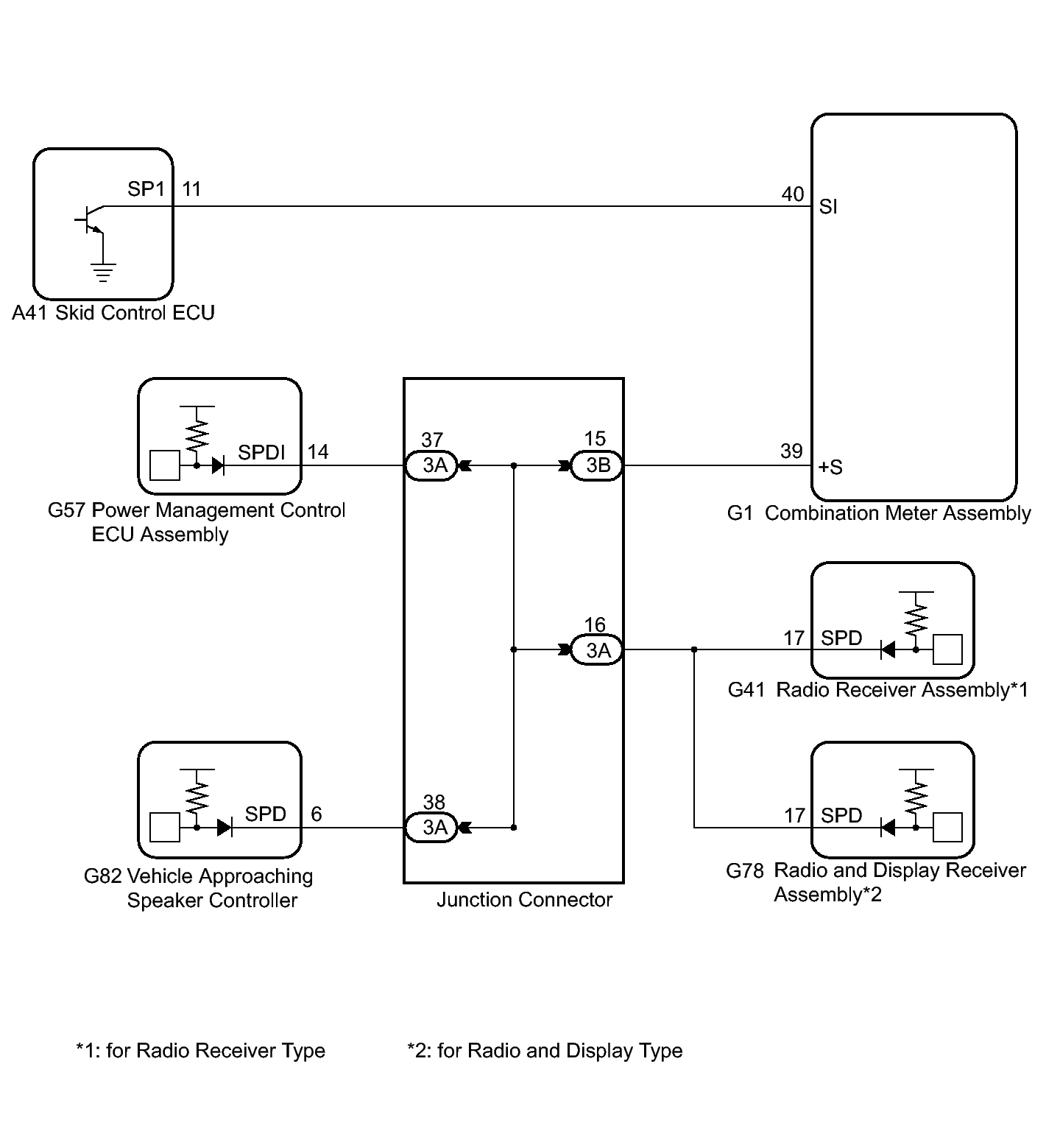

Fig 1: Speed Signal Circuit Wiring Diagram

GTY447800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
