System Diagram [12/2013 - ]

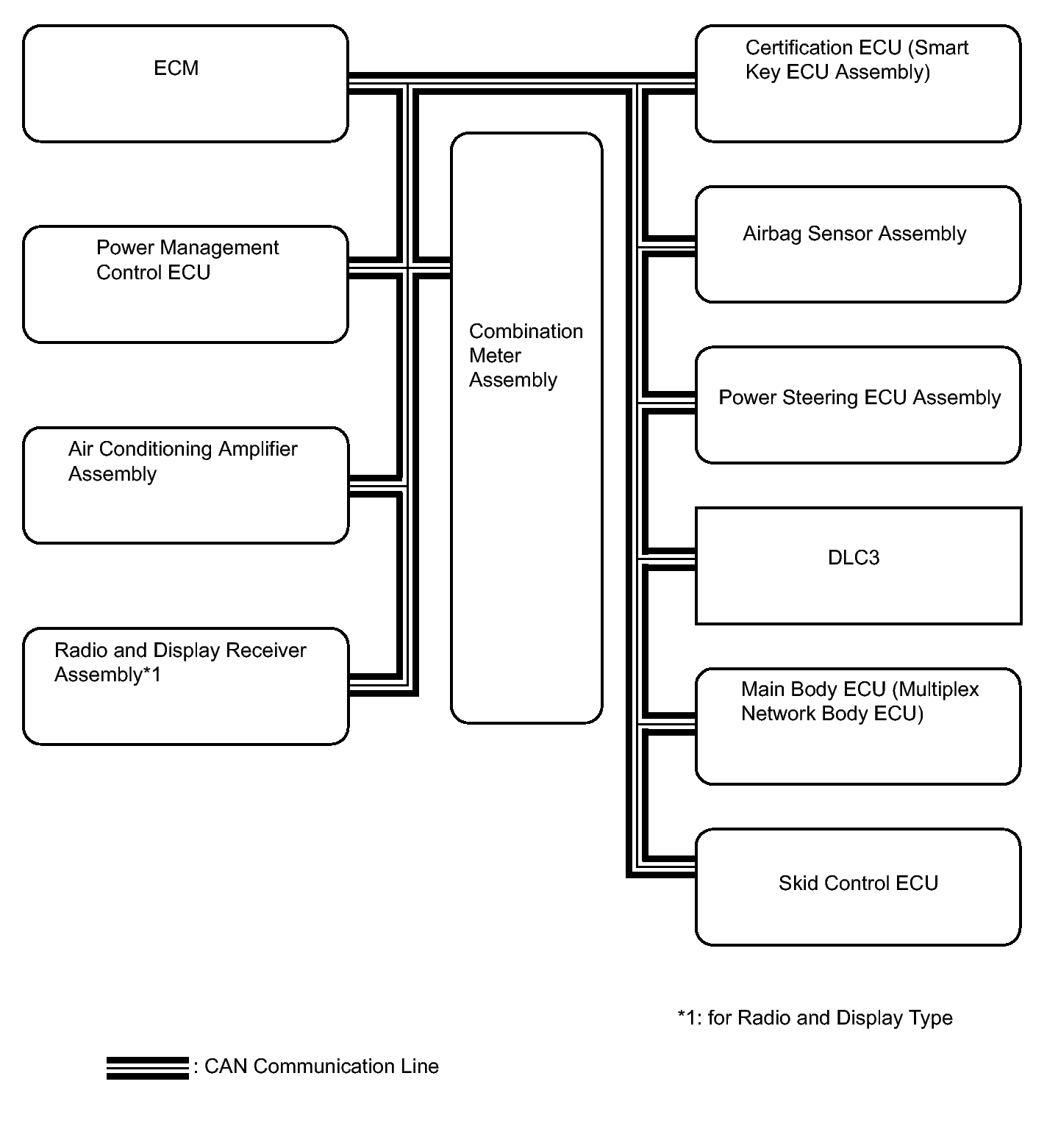

Fig 1: Identifying Meter / Gauge System Diagram (1 Of 2)
GTY338626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

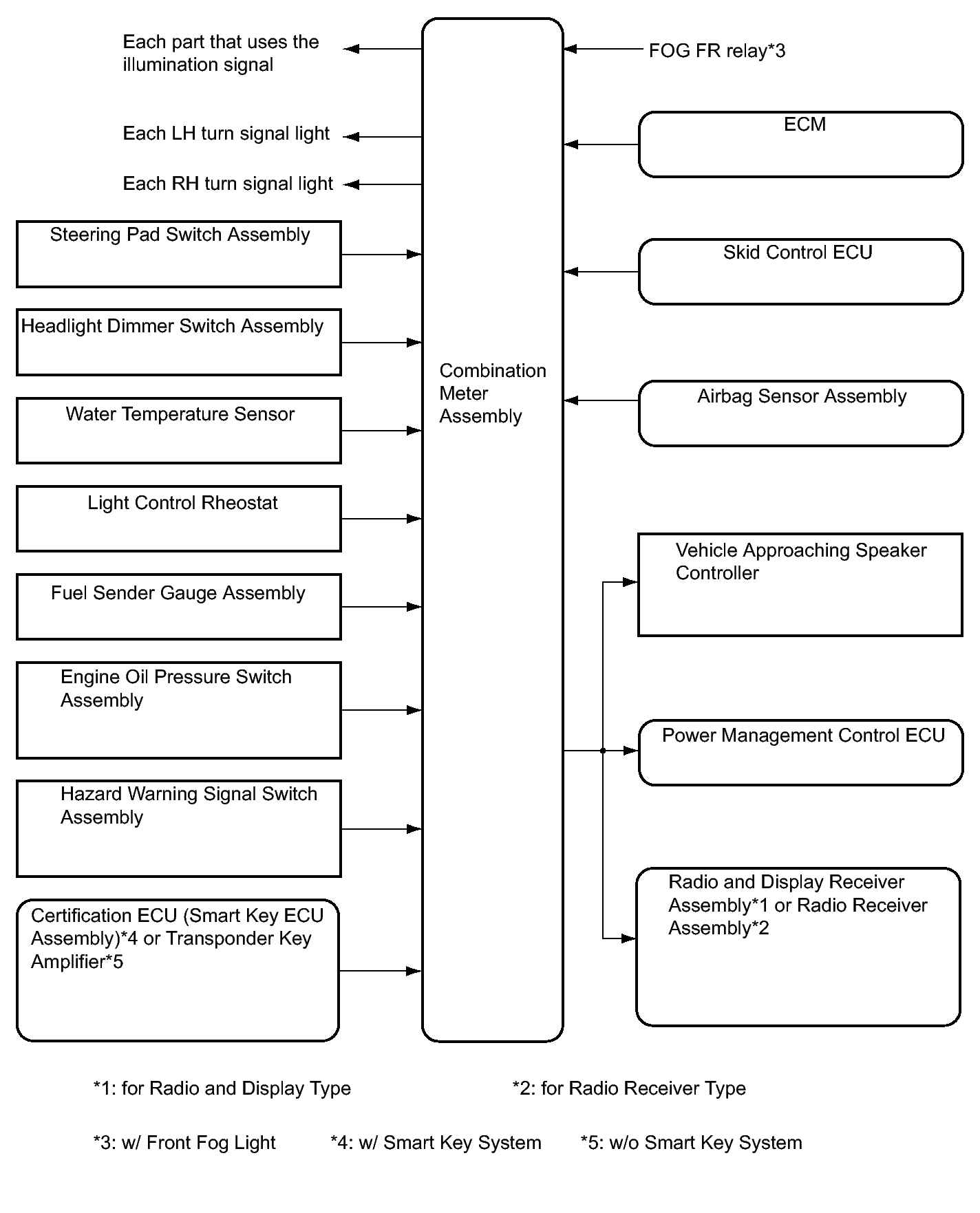

Fig 2: Identifying Meter / Gauge System Diagram (2 Of 2)
GTY328780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
