Components [12/2013 - 11/2016]: Illustration

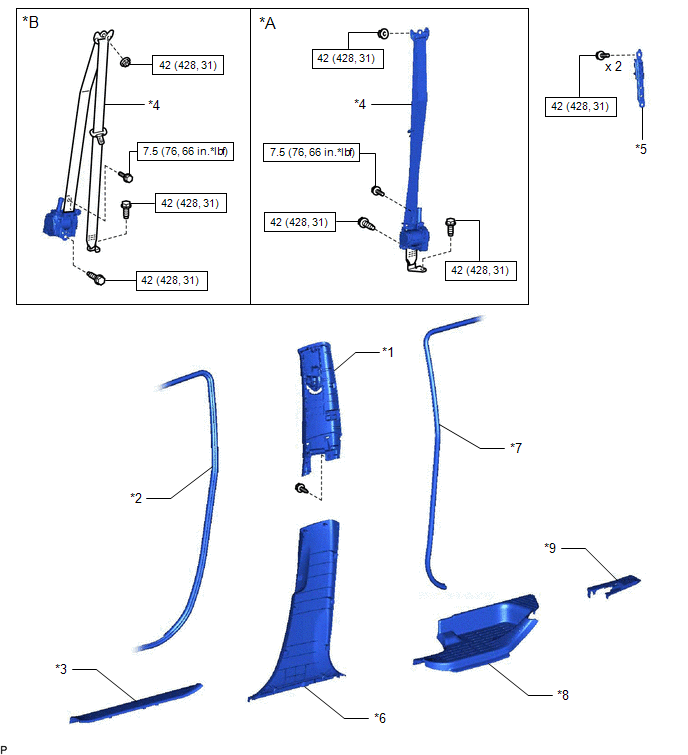

Fig 1: Front Seat Outer Belt Assembly With Pre-Tensioner Replacement Components With Torque Specifications
| Callout | Description | Callout | Description |
| *A | for LH Side | *B | for RH Side |
| *1 | CENTER PILLAR GARNISH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP |
| *3 | FRONT DOOR SCUFF PLATE | *4 | FRONT SEAT OUTER BELT ASSEMBLY |
| *5 | FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY | *6 | LOWER CENTER PILLAR GARNISH |
| *7 | REAR DOOR OPENING TRIM WEATHERSTRIP | *8 | REAR DOOR SCUFF PLATE |
| *9 | REAR OUTER SEAT TRACK BRACKET COVER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
