Components [12/2013 - ]: Illustration

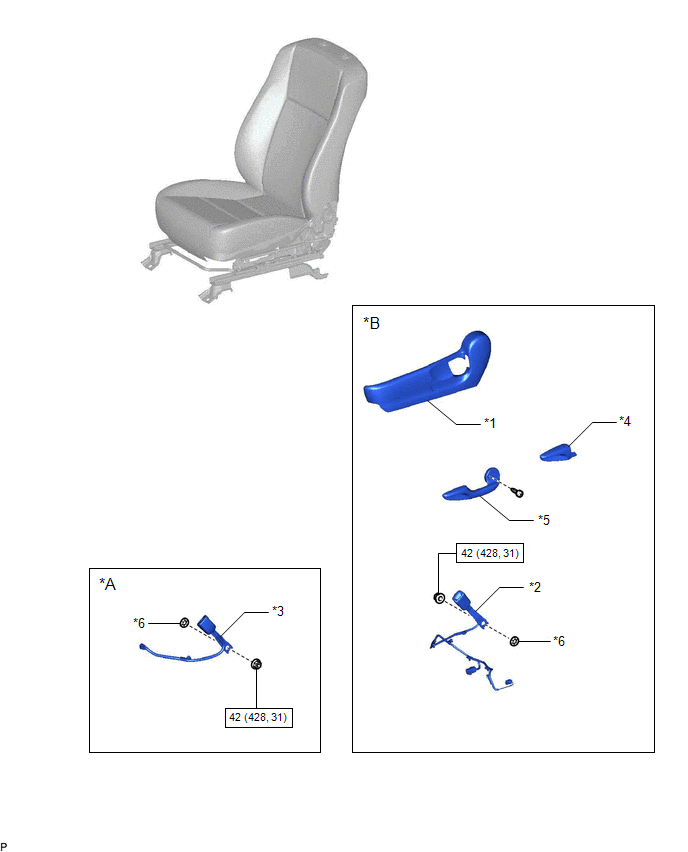

Fig 1: Front Seat Inner Belt Assembly (For Manual Seat) Replacement Components With Torque Specifications
| Callout | Description | Callout | Description |
| *A | for Front Passenger Side | *B | for Driver Side |
| *1 | FRONT SEAT CUSHION SHIELD | *2 | FRONT SEAT INNER BELT ASSEMBLY LH |
| *3 | FRONT SEAT INNER BELT ASSEMBLY RH | *4 | RECLINING ADJUSTER RELEASE HANDLE |
| *5 | VERTICAL ADJUSTING HANDLE | *6 | FRONT SEAT BELT ANCHOR PLATE |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
