Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [11/2016 - ]

  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [11/2016 - ]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to PRECAUTION [11/2016 - ]

  4. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  5. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  6. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  7. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  8. DISCONNECT VENTILATION HOSE
    1. Slide the clip and disconnect the ventilation hose from the intake air surge tank assembly.
      GTY693125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT PURGE VALVE (PURGE VSV)
    1. Disconnect the No. 1 fuel vapor feed hose from the intake air surge tank assembly.
      GTY693115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and disconnect the purge valve (purge VSV) from the intake air surge tank assembly.
  10. REMOVE NO. 2 SURGE TANK STAY
    1. Remove the 2 bolts and No. 2 surge tank stay from the intake air surge tank assembly and camshaft housing RH.
      GTY693116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE INTAKE AIR SURGE TANK ASSEMBLY
    1. Disconnect the vacuum switching valve (for ACIS) connector.
      GTY693117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps to disconnect the vacuum hose sub-assembly from the intake air surge tank assembly.
    3. Disengage the 2 clamps to disconnect the vacuum hose sub-assembly from the intake air surge tank assembly.
      GTY713882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Vacuum Hose Sub-assembly
      *2 No. 2 Air Tube
    4. Disengage the clamp to disconnect the No. 2 air tube from the intake air surge tank assembly.
    5. Remove the 5 bolts, 2 nuts and intake air surge tank assembly from the intake manifold.

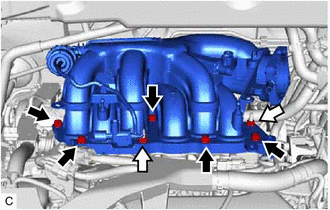

      GTY738125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
  12. REMOVE AIR SURGE TANK TO INTAKE MANIFOLD GASKET
    1. Remove the air surge tank to intake manifold gasket from the intake air surge tank assembly.
      GTY627987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 1 V-BANK COVER BRACKET

    HINT:

    Perform this procedure only when replacement of the No. 1 V-bank cover bracket is necessary.

    1. Remove the 2 No. 1 V-bank cover brackets from the intake air surge tank assembly.
      GTY627913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 ENGINE MOUNTING STAY RH
    1. Remove the bolt, 2 nuts and No. 2 engine mounting stay RH from the engine moving control rod.
      GTY731645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    2. Disengage the wire harness clamp from the wire harness clamp bracket.
      GTY693119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and wire harness clamp bracket from the No. 2 engine mounting stay RH.
      GTY693109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the bolt and No. 2 engine mounting stay RH from the intake manifold and engine mounting insulator sub-assembly RH.
      GTY732358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. DISCONNECT FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  16. REMOVE FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 6

  17. REMOVE NO. 1 DELIVERY PIPE SPACER

    Refer to PROCEDURE - Step 7

  18. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 8

  19. REMOVE INTAKE MANIFOLD
    1. Remove the 4 bolts, 4 nuts and intake manifold from the cylinder head sub-assembly.
      GTY711360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
  20. REMOVE INTAKE MANIFOLD TO HEAD GASKET NO. 1
    1. Remove the 2 No. 1 intake manifold to head gaskets from each cylinder head sub-assembly.
      GTY693111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE STUD BOLT

    HINT:

    If a stud bolt is deformed or the threads are damaged, replace it.

    1. Using an E6 "TORX" socket wrench, remove the 2 stud bolts from the intake manifold.
      GTY627992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
