Reassembly [12/2013 - ]: Procedure

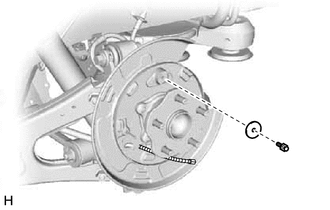

1. Install the parking brake shoe guide plate with the parking brake shoe guide plate set bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

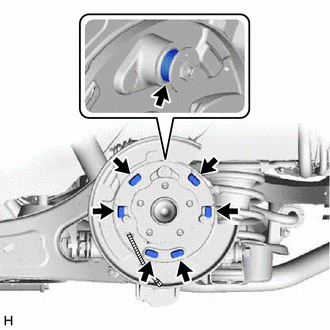

1. Apply high temperature grease to the areas of the parking brake plate which make contact with the shoes as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   High Temperature Grease

1. for Front Side:

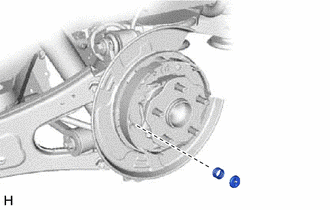

   1. Install the parking brake shoe hold down spring pin.
2. for Rear Side:

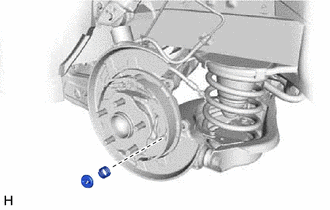

   1. Install the parking brake shoe hold down spring pin.

1. Apply high temperature grease to the areas of the parking brake shoe lever which make contact with the No. 2 parking brake shoe assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   High Temperature Grease

2. Temporarily install the parking brake shoe lever to the No. 2 parking brake shoe assembly with a new parking brake shoe type C washer.
3. Using a feeler gauge, measure the clearance between the No. 2 parking brake shoe assembly and parking brake shoe lever.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Clearance

   Less than 0.35 mm (0.0138 in.)

   If the clearance is not as specified, replace the parking brake shoe shim with one of the correct size.

   Parking Brake Shoe Shim

   Part No.	Shim Thickness
   90564-09184	0.3 mm (0.0118 in.)
   90564-09185	0.6 mm (0.0236 in.)
   90564-09186	0.9 mm (0.0354 in.)

4. Select a parking brake shoe shim and install it and the parking brake shoe type C washer.
5. Using a pair of pliers, squeeze together the ends of the parking brake shoe type C washer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

6. Check that the parking brake shoe lever moves smoothly.

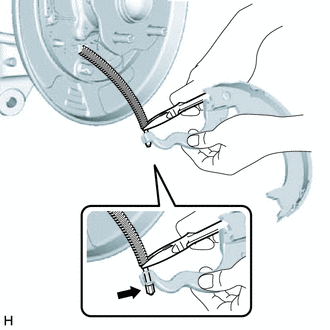

1. Using needle-nose pliers, connect the parking brake shoe lever to the No. 3 parking brake cable assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the parking brake shoe return tension spring to the No. 2 parking brake shoe assembly.

1. Install the No. 1 parking brake shoe assembly to the parking brake shoe return tension spring.

1. Apply high temperature grease to the parking brake shoe adjusting screw set as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   High Temperature Grease

2. Install the parking brake shoe adjusting screw set to the No. 1 parking brake shoe assembly and No. 2 parking brake shoe assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the No. 2 parking brake shoe assembly to the backing plate with the parking brake shoe hold down spring cup and parking brake shoe hold down compression spring.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the parking brake shoe strut compression spring.

1. Install the parking brake shoe lever strut.

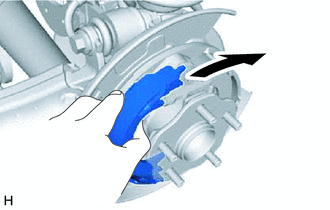

2. Install the No. 1 parking brake shoe assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the No. 1 parking brake shoe assembly to the backing plate with the parking brake shoe hold down spring cup and parking brake shoe hold down compression spring.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. for Front Side:
   1. Install the parking brake shoe return tension spring.
2. for Rear Side:
   1. Install the parking brake shoe return tension spring.

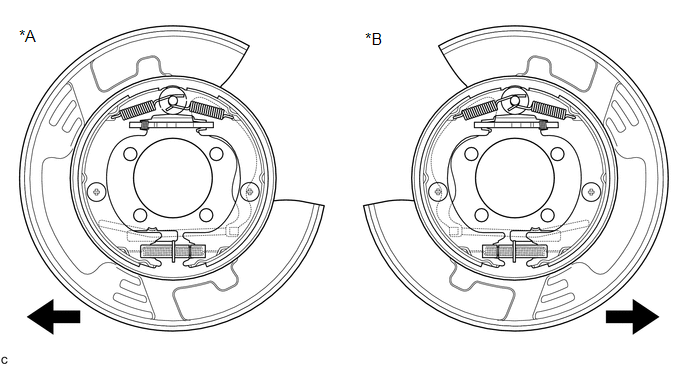

1. Check that each part is installed properly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	LH Side	*B	RH Side
   	Front of the Vehicle	-	-

   NOTE:

   There should be no oil or grease on the friction surfaces of the shoe linings or discs.

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 9

Refer to ADJUSTMENT [12/2013 - ]

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

1. Drive the vehicle at about 50 km/h (31 mph) on a safe, level and dry road.
2. Depress the parking brake pedal with 150 N (15 kgf, 33.7 lbf) of force.
3. Drive the vehicle for about 400 m (0.25 mile) in this condition.
4. Repeat this procedure 3 times.
   NOTE:

   Set a 5-minute interval between each procedure to prevent the brake assembly from overheating.
