Disassembly [12/2013 - ]: Procedure

  1. REMOVE REAR WHEEL
  2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG
  4. REMOVE REAR DISC

    Refer to PROCEDURE - Step 13

  5. REMOVE PARKING BRAKE SHOE RETURN TENSION SPRING (for Upper Side)

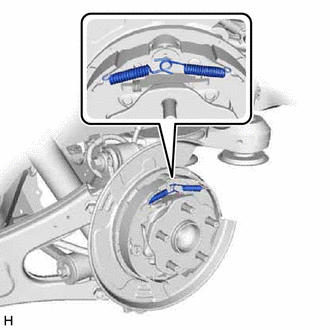

    1. Remove the 2 parking brake shoe return tension springs.
      GTY432497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be sure to put an identification mark on each parking brake shoe return tension spring so that it can be reinstalled to its original position.

  6. SEPARATE NO. 1 PARKING BRAKE SHOE ASSEMBLY
    1. Remove the parking brake shoe hold down spring cup and parking brake shoe hold down compression spring to separate the No. 1 parking brake shoe assembly from the backing plate.
      GTY432496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE PARKING BRAKE SHOE LEVER STRUT

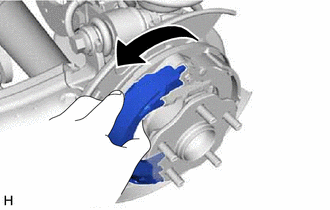

    1. Pull the No. 1 parking brake shoe assembly towards the front of the vehicle by hand as shown in the illustration.
      GTY432507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

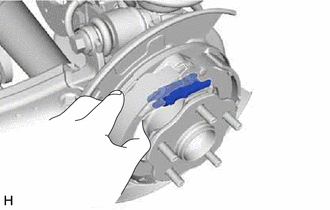

    2. Remove the parking brake shoe lever strut.
      GTY432493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE PARKING BRAKE SHOE STRUT COMPRESSION SPRING
    1. Remove the parking brake shoe strut compression spring.
      GTY432492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. SEPARATE NO. 2 PARKING BRAKE SHOE ASSEMBLY
    1. Remove the parking brake shoe hold down spring cup and parking brake shoe hold down compression spring to separate the No. 2 parking brake shoe assembly from the backing plate.
      GTY432490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET
    1. Remove the parking brake shoe adjusting screw set.
      GTY432489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 1 PARKING BRAKE SHOE ASSEMBLY

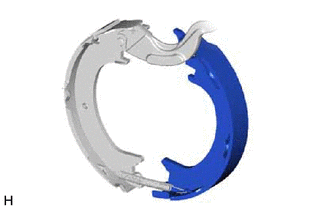

    1. Remove the No. 1 parking brake shoe assembly.
      GTY452291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE PARKING BRAKE SHOE RETURN TENSION SPRING (for Lower Side)
    1. Remove the parking brake shoe return tension spring.
      GTY432491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. SEPARATE PARKING BRAKE SHOE LEVER

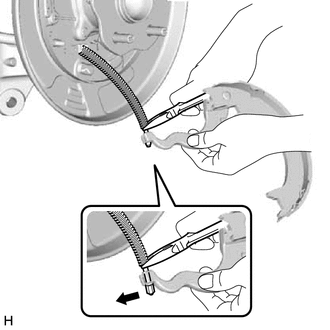

    1. Using needle-nose pliers, separate the parking brake shoe lever from the No. 3 parking brake cable assembly.
      GTY432485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the No. 3 parking brake cable assembly.

  14. REMOVE PARKING BRAKE SHOE LEVER

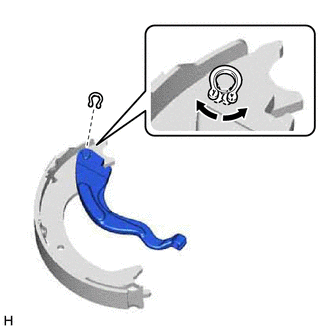

    1. Using a screwdriver, remove the parking brake shoe type C washer, parking brake shoe shim and parking brake shoe lever.
      GTY432484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Parking brake shoe shims are provided when necessary to adjust the clearance between the parking brake shoe lever and parking brake shoe type C washer. Some vehicles may not be equipped with shims.

  15. REMOVE PARKING BRAKE SHOE HOLD DOWN SPRING PIN
    1. for Front Side:

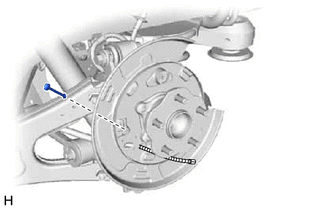

      1. Remove the parking brake shoe hold down spring pin.
        GTY432486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Rear Side:

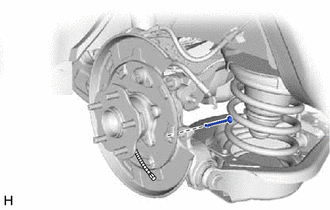

      1. Remove the parking brake shoe hold down spring pin.
        GTY432517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE PARKING BRAKE SHOE GUIDE PLATE
    1. Remove the parking brake shoe guide plate set bolt and parking brake shoe guide plate.
      GTY432488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
