Removal [12/2013 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7

  2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8

  3. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 36

  4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 40

  5. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 41

  6. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 42

  7. REMOVE GLOVE BOX LIGHT ASSEMBLY

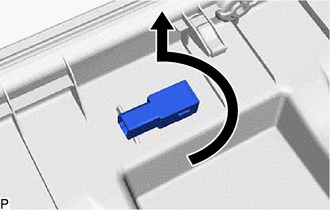

    1. Turn the glove box light assembly as shown in the illustration to remove it.
      GTY437624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
