Removal [11/2016 - ]: Procedure

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 1

  2. REMOVE RADIATOR ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  3. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 3

  4. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the bolt and disconnect the discharge hose sub-assembly from the compressor assembly with pulley.
      GTY719054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the discharge hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  5. DISCONNECT SUCTION HOSE SUB-ASSEMBLY
    1. Remove the bolt and disconnect the suction hose sub-assembly from the compressor assembly with pulley.
      GTY719056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  6. REMOVE COMPRESSOR ASSEMBLY WITH PULLEY

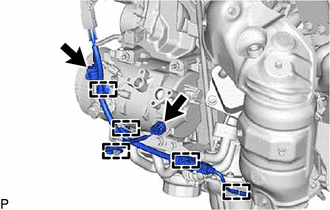

    1. Disconnect each connector.
      GTY738084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage each clamp.
    3. Remove the 2 bolts, 2 nuts and bracket.
      GTY697634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    4. Using an E8 "TORX" socket wrench, remove the 2 stud bolts.
      GTY738088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the compressor assembly with pulley.
