Removal [12/2013 - 11/2016]: Procedure

Refer to REMOVAL [12/2013 - 11/2016]

1. Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.
   NOTE:

   • Using height adjustment attachments and plate lift attachments, place the engine assembly horizontally.
   • To prevent the oil pan sub-assembly from deforming, do not place any attachments under the oil pan sub-assembly of the engine assembly.
   • Using an engine sling device and engine lift, secure the engine assembly before service.

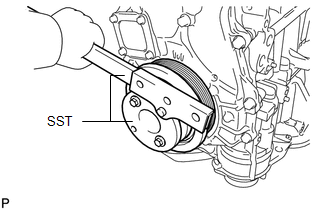

2. Using SST, hold the crankshaft pulley.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09213-54015
   • SST: 09330-00021

   HINT:

   SST (crankshaft pulley holding tool) fixing bolt part No.: 91551-80650 (2 pcs)

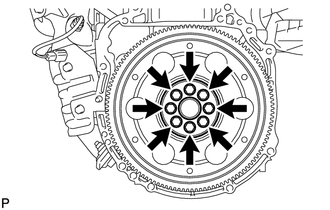

3. Remove the 8 bolts, front drive plate spacer, drive plate and ring gear sub-assembly, and rear drive plate spacer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

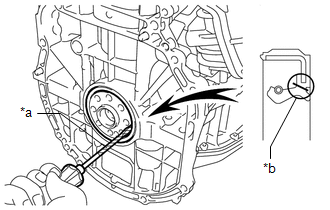

1. Using a knife, cut off the lip of the rear engine oil seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape
   *b	Cut Position

2. Using a screwdriver, pry out the rear engine oil seal.
   NOTE:

   Do not damage the surface of the rear engine oil seal press fit hole or the crankshaft.

   HINT:

   Tape the screwdriver tip before use.
