Removal [12/2013 - ]: Procedure

See step  8 , or see step  8

See step  11 , or see step  11

See step  14 , or see step  14

See step  1

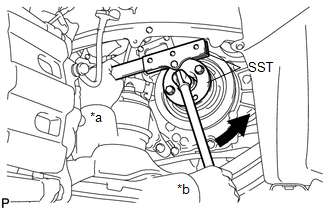

1. Using SST, hold the crankshaft pulley and loosen the crankshaft pulley bolt. Further loosen the crankshaft pulley bolt until 2 or 3 threads are screwed into the crankshaft.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Hold
   *b	Turn

   • SST: 09213-54015
   • SST: 09330-00021

   HINT:

   SST (crankshaft pulley holding tool) fixing bolt part No.: 91551-80650 (2 pcs)

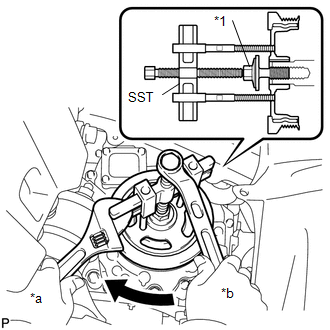

2. Using SST and the crankshaft pulley bolt, remove the crankshaft pulley and crankshaft pulley bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Crankshaft Pulley Bolt
   *a	Hold
   *b	Turn

   • SST: 09950-50013
     1. 09951-05010
     2. 09952-05010
     3. 09953-05020
     4. 09954-05011

   HINT:

   Apply lubricant to the threads and end of SST.

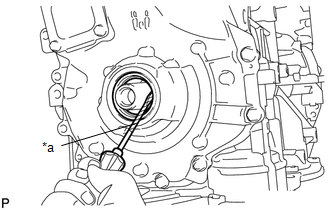

1. Using a screwdriver, pry out the timing chain cover oil seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   Do not damage the surface of the timing chain cover oil seal press fit hole or the crankshaft.

   HINT:

   Tape the screwdriver tip before use.
