Components [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different variant/trim than selected.

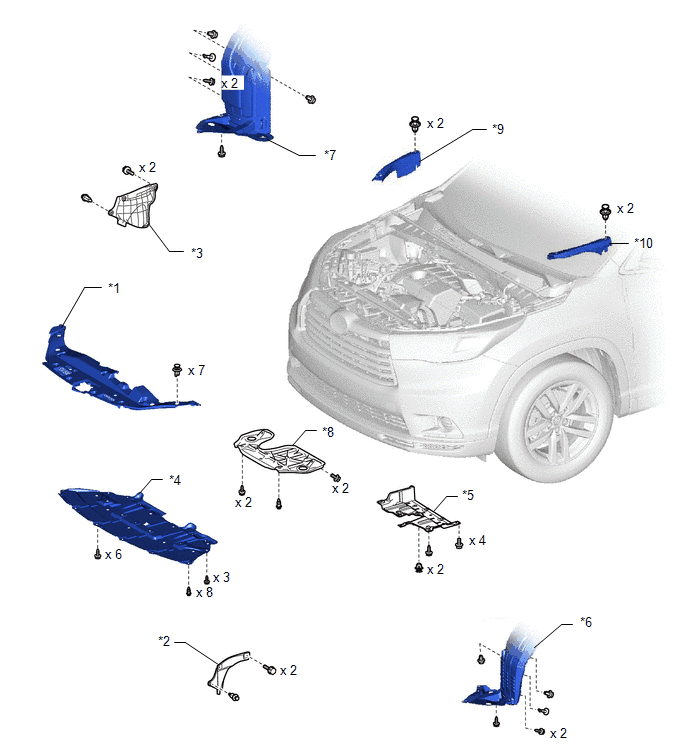

Fig 1: Engine Assembly & Engine Under Cover Replacement Components (1 Of 8)
GTY441151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COOL AIR INTAKE DUCT SEAL *2 FRONT FENDER APRON SEAL LH
*3 FRONT FENDER APRON SEAL RH *4 NO. 1 ENGINE UNDER COVER
*5 FLOOR UNDER COVER LH *6 FRONT FENDER LINER LH
*7 FRONT FENDER LINER RH *8 NO. 2 ENGINE UNDER COVER
*9 RADIATOR SIDE SEAL RH *10 RADIATOR SIDE DEFLECTOR SEAL LH

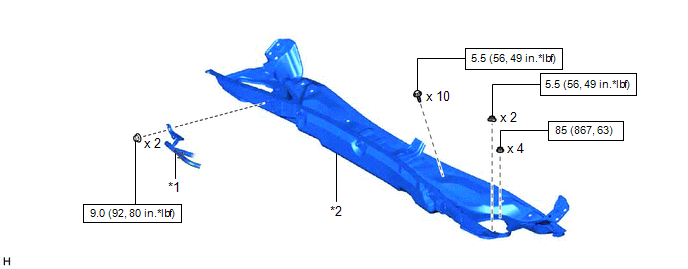

Fig 1: Engine Assembly Replacement Components With Torque Specifications (2 Of 8)
GTY448378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BRAKE BOOSTER VACUUM EJECTOR *2 OUTER COWL TOP PANEL SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -

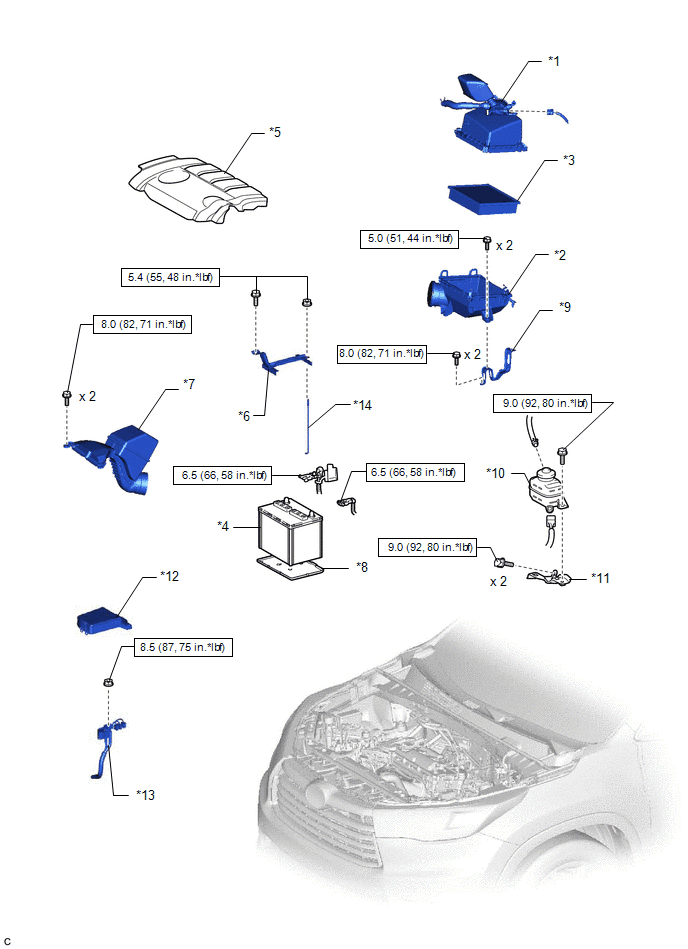

Fig 1: Engine Assembly Replacement Components With Torque Specifications (3 Of 8)
GTY425506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR CLEANER CAP WITH AIR CLEANER HOSE *2 AIR CLEANER CASE SUB-ASSEMBLY
*3 AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY *4 BATTERY
*5 NO. 1 ENGINE COVER SUB-ASSEMBLY *6 BATTERY CLAMP
*7 INLET AIR CLEANER ASSEMBLY *8 BATTERY TRAY
*9 NO. 1 AIR CLEANER BRACKET *10 BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY
*11 RESERVOIR BRACKET *12 NO. 1 RELAY BLOCK COVER
*13 ENGINE WIRE *14 BATTERY CLAMP BOLT
N*m (kgf*cm, ft.*lbf): Specified torque - -

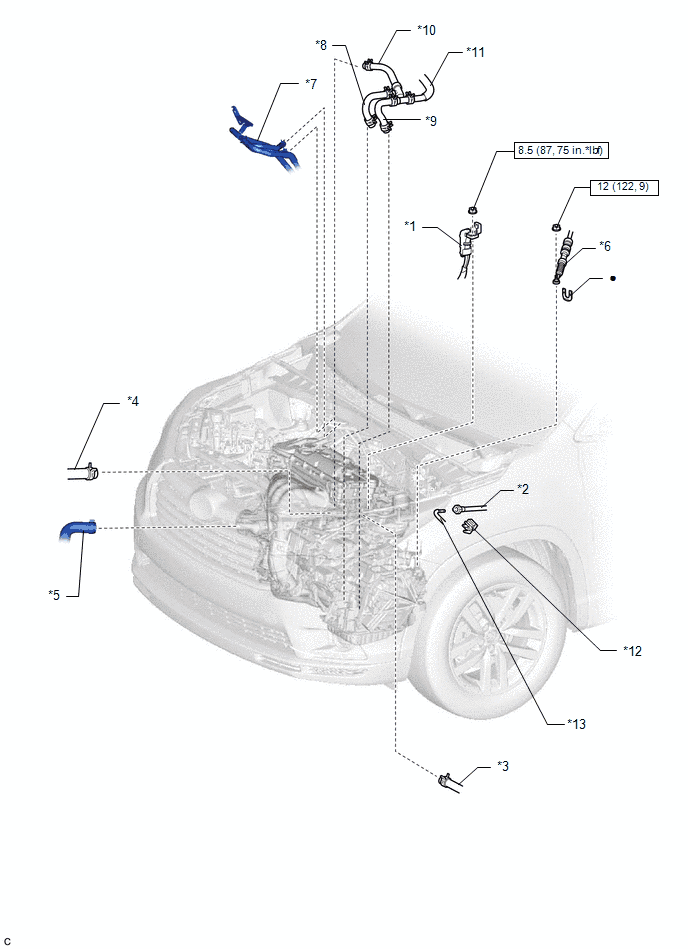

Fig 1: Engine Assembly Replacement Components With Torque Specifications (4 Of 8)
GTY424889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE WIRE *2 FUEL TUBE SUB-ASSEMBLY
*3 INLET HEATER WATER HOSE *4 NO. 1 RADIATOR HOSE
*5 NO. 2 RADIATOR HOSE *6 TRANSMISSION CONTROL CABLE ASSEMBLY
*7 UNION TO VACUUM TUBE HOSE *8 NO. 4 WATER BY-PASS HOSE
*9 NO. 3 WATER BY-PASS HOSE *10 OUTLET HEATER WATER HOSE A
*11 OUTLET HEATER WATER HOSE B *12 NO. 1 FUEL PIPE CLAMP
*13 FUEL MAIN TUBE - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

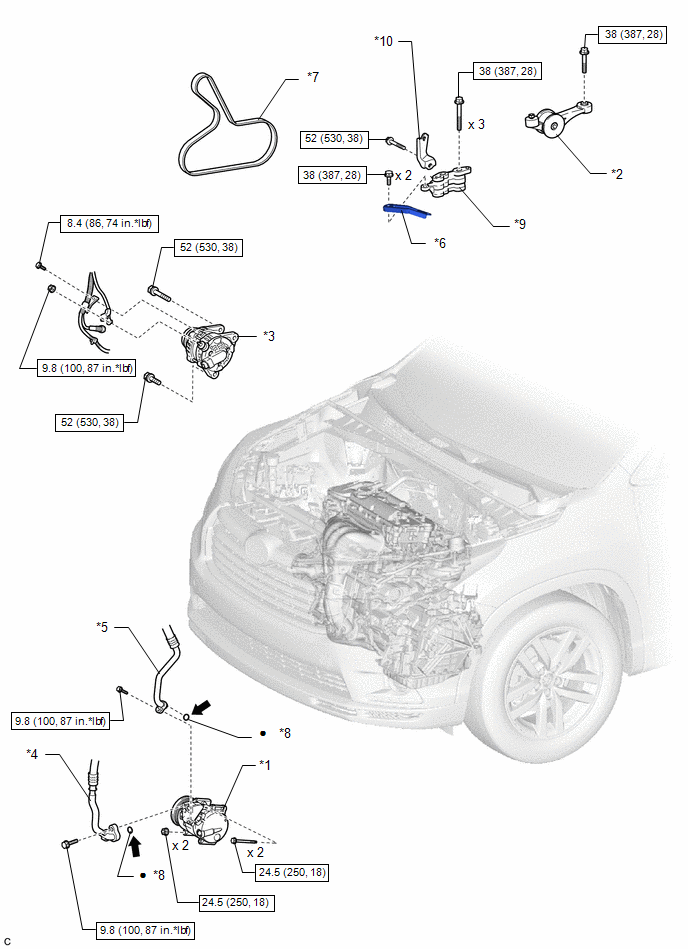

Fig 1: Engine Assembly Replacement Components With Torque Specifications (5 Of 8)
GTY436209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COMPRESSOR ASSEMBLY WITH PULLEY *2 ENGINE MOVING CONTROL ROD
*3 GENERATOR ASSEMBLY *4 DISCHARGE HOSE SUB-ASSEMBLY
*5 SUCTION HOSE SUB-ASSEMBLY *6 NO. 2 ENGINE MOUNTING STAY RH
*7 V-RIBBED BELT *8 O-RING
*9 ENGINE MOVING CONTROL ROD BRACKET *10 NO. 3 ENGINE MOUNTING STAY RH
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Compressor oil ND-OIL 8 or equivalent - -

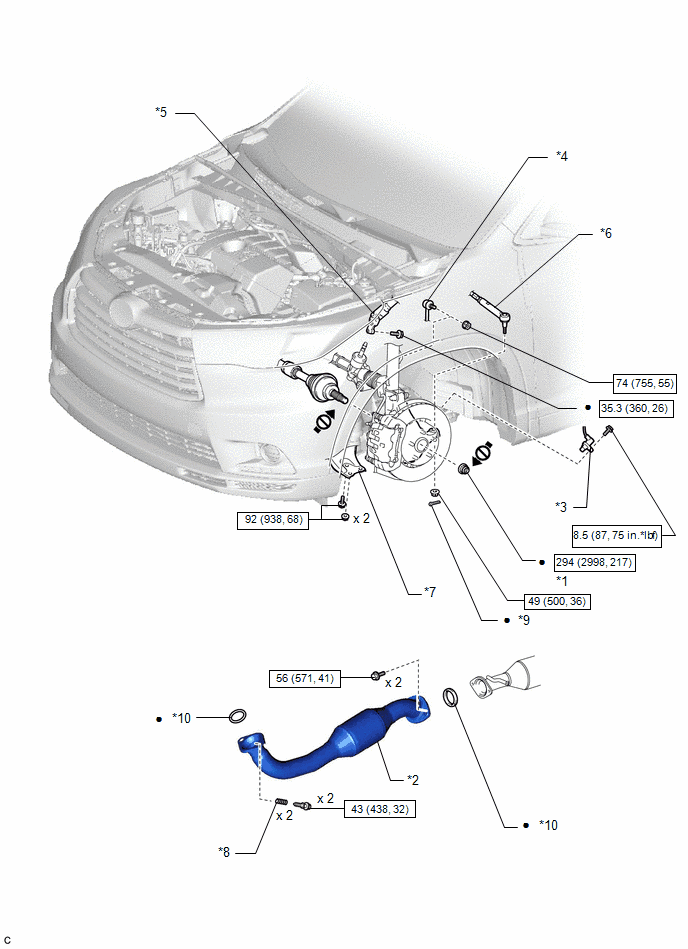

Fig 1: Engine Assembly Replacement Components With Torque Specifications (6 Of 8)
GTY452278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT AXLE SHAFT NUT LH *2 FRONT EXHAUST PIPE ASSEMBLY
*3 FRONT SPEED SENSOR LH *4 FRONT STABILIZER LINK ASSEMBLY LH
*5 STEERING INTERMEDIATE SHAFT ASSEMBLY *6 TIE ROD ASSEMBLY LH
*7 FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH *8 COMPRESSION SPRING
*9 COTTER PIN *10 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Do not apply lubricants to the threaded parts - -

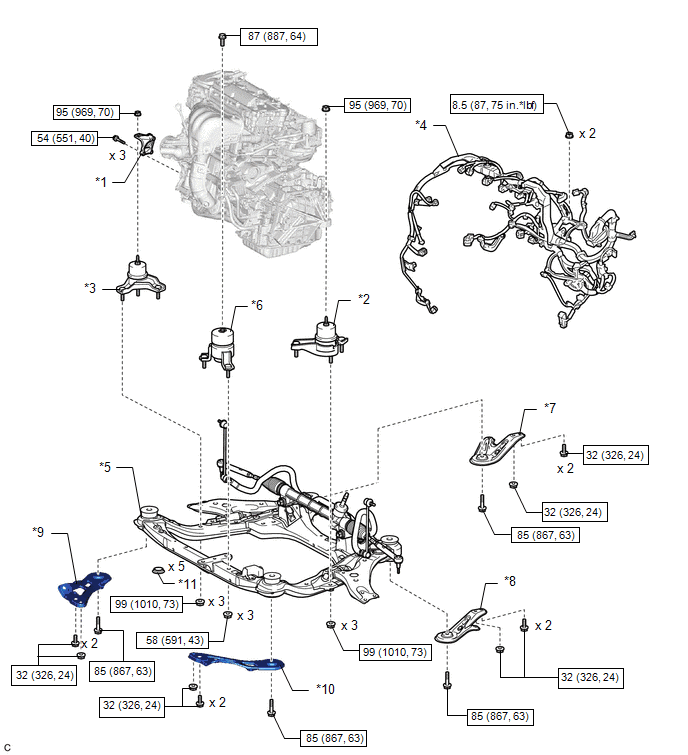

Fig 1: Engine Assembly Replacement Components With Torque Specifications (7 Of 8)
GTY428890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE MOUNTING BRACKET RH *2 ENGINE MOUNTING INSULATOR LH
*3 ENGINE MOUNTING INSULATOR RH *4 ENGINE WIRE
*5 FRONT FRAME ASSEMBLY *6 FRONT ENGINE MOUNTING INSULATOR
*7 FRONT SUSPENSION MEMBER REAR BRACE RH *8 FRONT SUSPENSION MEMBER REAR BRACE LH
*9 FRAME SIDE RAIL PLATE RH *10 FRAME SIDE RAIL PLATE LH
*11 HOLE PLUG - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

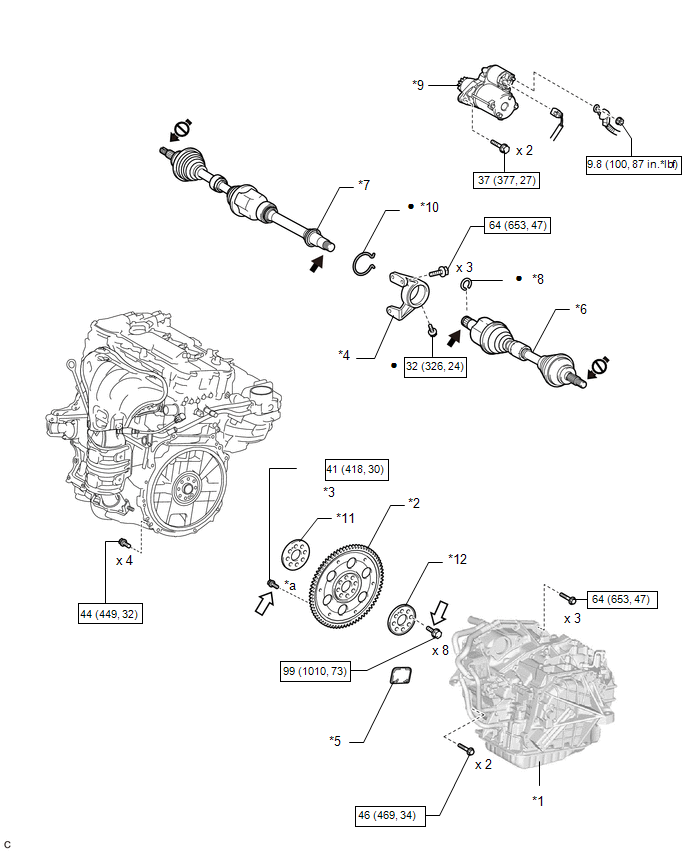

Fig 1: Engine Assembly Replacement Components With Torque Specifications (8 Of 8)
GTY435918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AUTOMATIC TRANSAXLE ASSEMBLY *2 DRIVE PLATE AND RING GEAR SUB-ASSEMBLY
*3 DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT *4 DRIVE SHAFT BEARING BRACKET
*5 FLYWHEEL HOUSING UNDER COVER *6 FRONT DRIVE SHAFT ASSEMBLY LH
*7 FRONT DRIVE SHAFT ASSEMBLY RH *8 FRONT DRIVE SHAFT HOLE SNAP RING LH
*9 STARTER ASSEMBLY *10 BEARING BRACKET HOLE SNAP RING
*11 FRONT DRIVE PLATE SPACER *12 REAR DRIVE PLATE SPACER
*a BLACK: x 1
SILVER: x 5		 - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
ATF WS Do not apply lubricants to the threaded parts
Adhesive 1324 * Precoated part
