Removal [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE V-RIBBED BELT

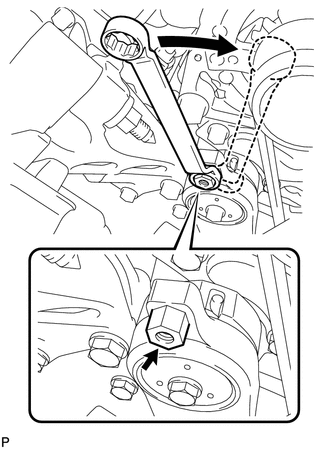

    1. Attach a wrench to the hexagonal portion of the V-ribbed belt tensioner assembly as shown in the illustration, rotate the V-ribbed belt tensioner assembly clockwise, and remove the V-ribbed belt.
      GTY174468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
