Components [12/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (1 Of 6)
GTY434749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MANIFOLD STAY *2 NO. 2 MANIFOLD STAY
*3 EXHAUST MANIFOLD SUB-ASSEMBLY *4 GASKET
*5 NO. 1 EXHAUST MANIFOLD HEAT INSULATOR - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part


Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (2 Of 6)
GTY446604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 THROTTLE WITH MOTOR BODY ASSEMBLY *2 THROTTLE POSITION SENSOR AND CONTROL MOTOR CONNECTOR
*3 FUEL TUBE BRACKET *4 FUEL TUBE
*5 NO. 1 WATER BY-PASS HOSE *6 NO. 2 WATER BY-PASS HOSE
*7 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

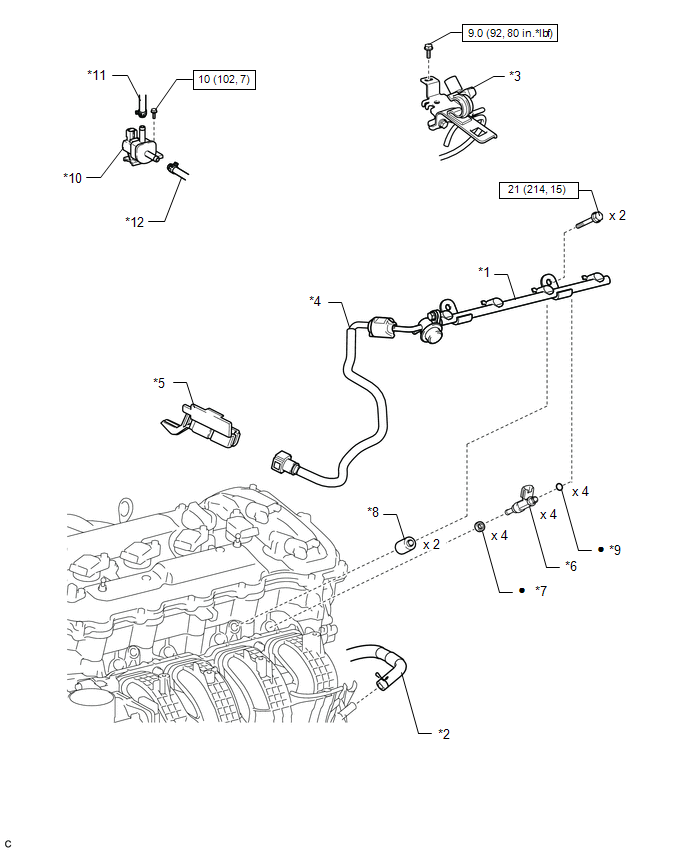

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (3 Of 6)
GTY443318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL DELIVERY PIPE *2 NO. 2 VENTILATION HOSE
*3 VACUUM SWITCHING VALVE ASSEMBLY *4 FUEL TUBE SUB-ASSEMBLY
*5 NO. 1 FUEL PIPE CLAMP *6 FUEL INJECTOR ASSEMBLY
*7 INJECTOR VIBRATION INSULATOR *8 FUEL DELIVERY SPACER
*9 O-RING *10 NO. 1 VACUUM SWITCHING VALVE
*11 NO. 1 VACUUM HOSE *12 NO. 2 VACUUM HOSE
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

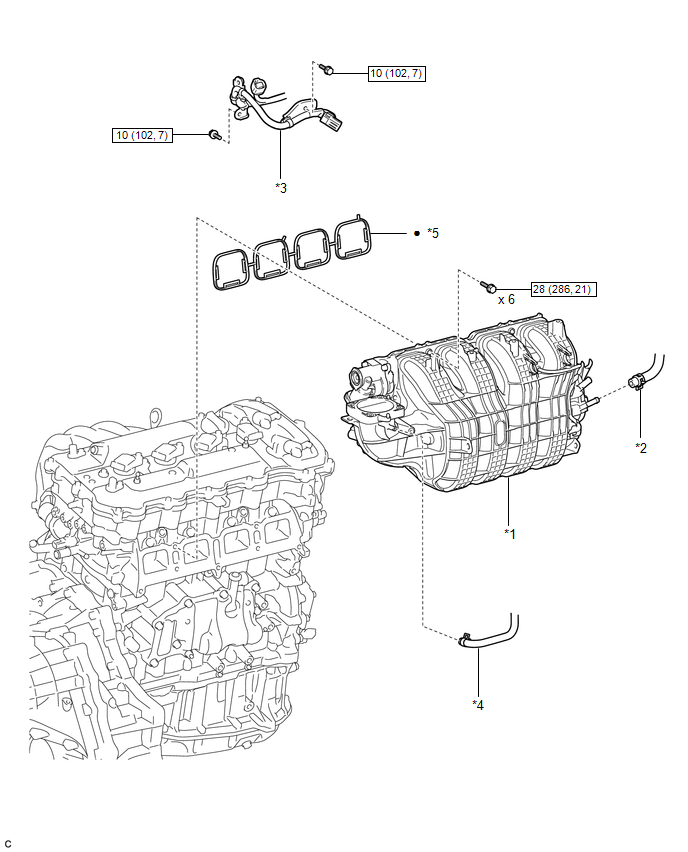

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (4 Of 6)
GTY590762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 INTAKE MANIFOLD *2 UNION TO VACUUM TUBE HOSE
*3 SENSOR WIRE *4 FUEL VAPOR FEED HOSE
*5 INTAKE MANIFOLD GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

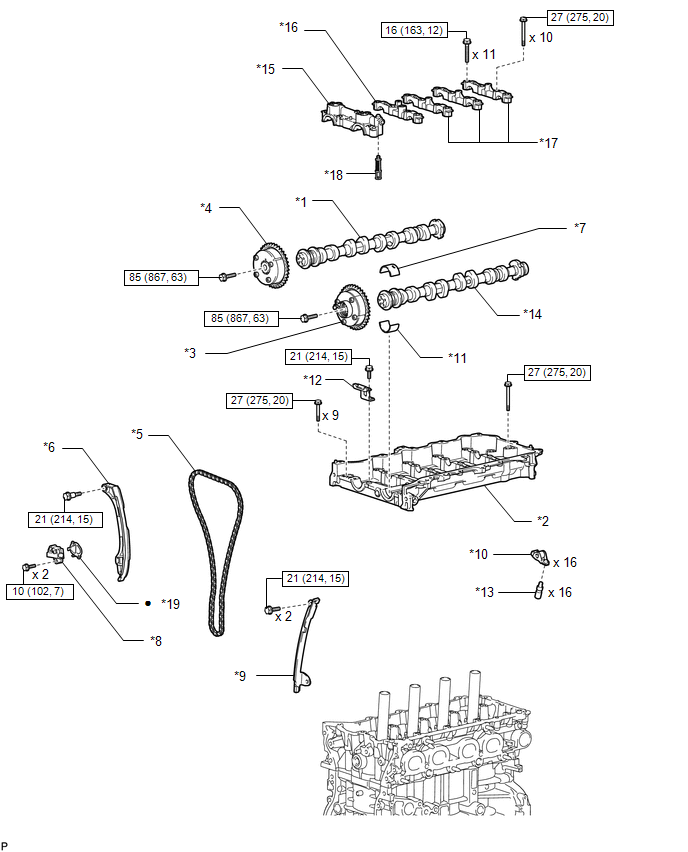

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (5 Of 6)
GTY429214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT *2 CAMSHAFT HOUSING SUB-ASSEMBLY
*3 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY *4 CAMSHAFT TIMING GEAR ASSEMBLY
*5 CHAIN SUB-ASSEMBLY *6 CHAIN TENSIONER SLIPPER
*7 NO. 1 CAMSHAFT BEARING *8 NO. 1 CHAIN TENSIONER ASSEMBLY
*9 NO. 1 CHAIN VIBRATION DAMPER *10 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
*11 NO. 2 CAMSHAFT BEARING *12 TIMING CHAIN GUIDE
*13 VALVE LASH ADJUSTER ASSEMBLY *14 NO. 2 CAMSHAFT
*15 NO. 1 CAMSHAFT BEARING CAP *16 NO. 2 CAMSHAFT BEARING CAP
*17 NO. 3 CAMSHAFT BEARING CAP *18 OIL CONTROL VALVE FILTER
*19 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

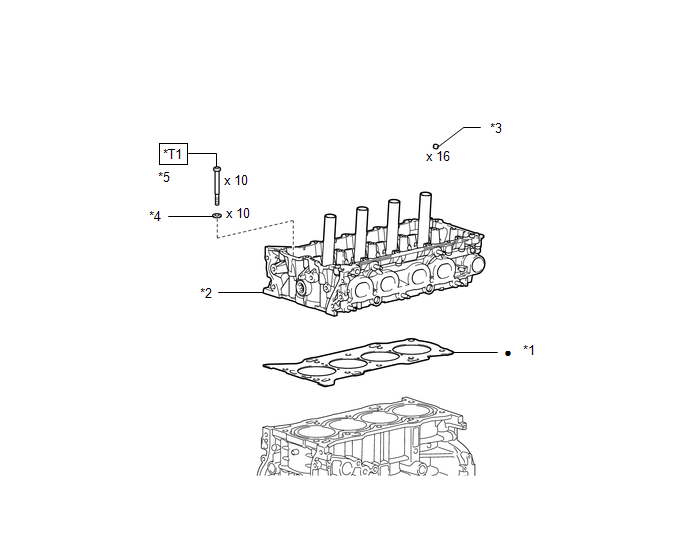

Fig 1: Cylinder Head Gasket Replacement Components (6 Of 6)
GTY447324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CYLINDER HEAD GASKET *2 CYLINDER HEAD SUB-ASSEMBLY
*3 VALVE STEM CAP *4 PLATE WASHER
*5 CYLINDER HEAD BOLT - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
*T1 1st: 36 (367, 27)
2nd: 36 (367, 27)
3rd: Turn 90°
4th: Turn 90°		 - -
