Installation [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL NO. 2 CAMSHAFT BEARING

    Refer to PROCEDURE - Step 20 , or refer to PROCEDURE - Step 20

  2. INSTALL NO. 1 CAMSHAFT BEARING

    Refer to PROCEDURE - Step 19 , or refer to PROCEDURE - Step 19

  3. INSTALL OIL CONTROL VALVE FILTER

    Refer to PROCEDURE - Step 21 , or refer to PROCEDURE - Step 21

  4. INSTALL CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
    1. Secure the No. 2 camshaft in a vise by clamping the hexagonal part between aluminum plates.
      NOTE:

      Do not damage the No. 2 camshaft by tightening the vise excessively.

    2. Align and fit the knock pin of the No. 2 camshaft with the knock pin hole of the camshaft timing exhaust gear assembly.
      GTY439574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Knock Pin Hole
      *b Knock Pin
    3. Check that there is no gap between the camshaft timing exhaust gear assembly and camshaft flange.
      GTY443879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Camshaft Timing Exhaust Gear Assembly
      *2 Camshaft Flange
      *a Incorrect
      *b Correct
      *c Gap
      *d No Gap
    4. Secure the camshaft timing exhaust gear assembly with the bolt.
      GTY366606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 85 N*m (867 kgf*cm, 63 ft.*lbf)

      NOTE:

      Do not disassemble the camshaft timing exhaust gear assembly.

      HINT:

      Perform "Inspection After Repair" after replacing the camshaft timing exhaust gear assembly.

      Refer to INITIALIZATION [12/2013 - ]

  5. SET NO. 1 CYLINDER TO TDC/COMPRESSION
    1. Turn the crankshaft pulley until its timing notch (groove) and the timing mark "0" of the timing chain cover sub-assembly are aligned.

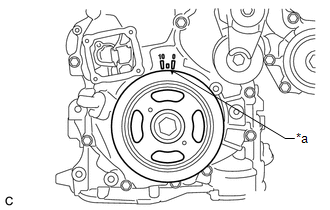

      GTY454978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Timing Notch (Groove)
  6. INSTALL NO. 2 CAMSHAFT
    1. Make sure that the No. 1 valve rocker arm sub-assembly is installed as shown in the illustration.
      GTY438543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Valve Rocker Arm Sub-assembly
      *2 Valve Lash Adjuster Assembly
      *3 Valve Stem Cap
    2. Clean the camshaft journals.
    3. Apply a light coat of engine oil to the camshaft journals, camshaft housing sub-assembly and camshaft bearing caps.
    4. Hold up the chain sub-assembly, align the timing mark and paint mark, and install the No. 2 camshaft.

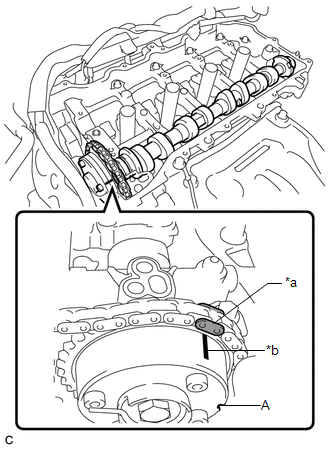

      GTY436130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark
      *b Timing Mark

      HINT:

  7. INSTALL CAMSHAFT
    1. Make sure that the No. 1 valve rocker arm sub-assembly is installed as shown in the illustration.
      GTY438544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Valve Rocker Arm Sub-assembly
      *2 Valve Lash Adjuster Assembly
      *3 Valve Stem Cap
    2. Clean the camshaft journals.
    3. Apply a light coat of engine oil to the camshaft journals, camshaft housing sub-assembly and camshaft bearing caps.
    4. Install the camshaft to the camshaft housing sub-assembly as shown in the illustration.

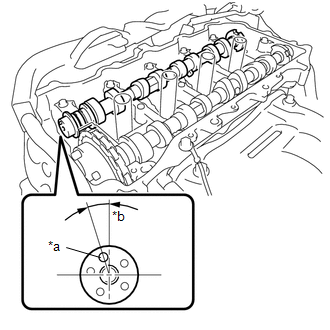

      GTY428602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Knock Pin
      *b Approximately 17°

      HINT:

      Perform "Inspection After Repair" after replacing the camshaft.

      Refer to INITIALIZATION [12/2013 - ]

  8. INSTALL CAMSHAFT BEARING CAP
    1. Confirm the marks and numbers on the No. 1 camshaft bearing cap, No. 2 camshaft bearing cap and 3 No. 3 camshaft bearing caps and place them in their proper positions and directions.

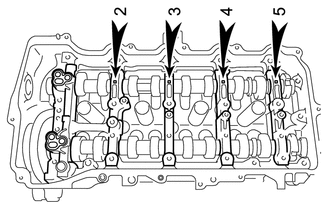

      GTY292210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Uniformly tighten the 10 bolts in several steps in the order shown in the illustration.

      Torque: 27 N*m (275 kgf*cm, 20 ft.*lbf)

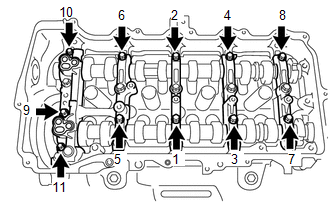

      Fig 1: Camshaft Bearing Caps Bolt Tightening Sequence (1 Of 2)

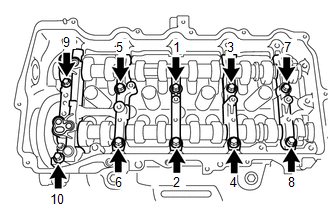

      GTY439230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Uniformly tighten the 11 bolts in several steps in the order shown in the illustration.

      Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

      Fig 2: Camshaft Bearing Caps Bolt Tightening Sequence (2 Of 2)
      GTY448849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check the torque of each bolt again.
  9. INSTALL CAMSHAFT TIMING GEAR ASSEMBLY
    1. Check the camshaft timing gear assembly position.

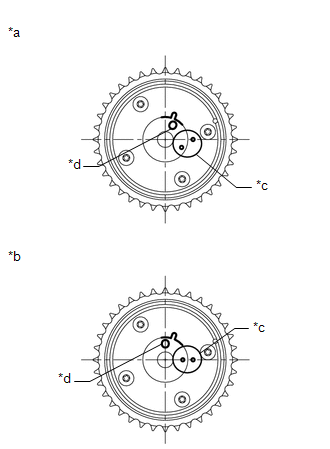

      GTY439330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Advanced Position
      *b Retarded Position
      *c Alignment Mark
      *d Knock Pin Hole
      NOTE:
      • If the camshaft timing gear assembly is set to the advanced position, do not let the camshaft timing gear assembly rotate clockwise during installation.
      • If the camshaft timing gear assembly has rotated to the most retarded position, make sure to release the lock pin and set the camshaft timing gear assembly to the most advanced position before tightening the bolt of the camshaft timing gear assembly.
    2. Install the camshaft timing gear assembly as shown in the illustration.

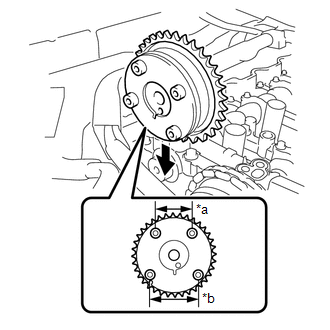

      GTY439287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Narrow
      *b Wide
    3. Turn the camshaft timing gear assembly approximately 180° counterclockwise.

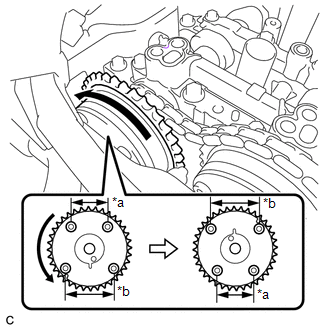

      GTY428501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Narrow
      *b Wide

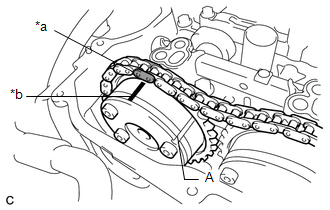

    4. Align the paint mark with the timing mark and install the chain sub-assembly to the camshaft timing gear assembly.
      GTY432788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark
      *b Timing Mark

      HINT:

      "A" is not a timing mark.

    5. Align and fit the knock pin of the camshaft with the knock pin hole of the camshaft timing gear assembly.
      GTY442563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Knock Pin
      *b Knock Pin Hole
    6. Check that there is no gap between the camshaft timing gear assembly and camshaft flange.
      GTY443878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Camshaft Timing Gear Assembly
      *2 Camshaft Flange
      *a Incorrect
      *b Correct
      *c Gap
      *d No Gap
    7. Secure the camshaft in place by hand, and then install the bolt of the camshaft timing gear assembly by hand.
      NOTE:

      Do not use any tools to install the bolt. If the bolt is installed using a tool, the lock pin will be damaged.

    8. If the lock pin has not been released, release it.
      1. After cleaning the intake side VVT oil hole on the No. 1 camshaft bearing cap, completely seal the oil hole with adhesive tape or equivalent as shown in the illustration to prevent air from leaking.

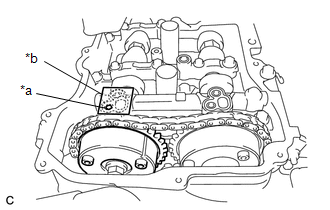

        GTY434369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Make a Hole
        *b Adhesive Tape Sealing Area
        NOTE:

        Be sure to seal the oil hole completely because air leaks due to insufficient sealing will prevent the lock pin from being released.

      2. Make a hole in the adhesive tape covering the oil hole as shown in the illustration. (Procedure A)
      3. Apply approximately 200 kPa (2.0 kgf/ cm2 , 29 psi) of air pressure to the hole made in procedure A to release the lock pin.

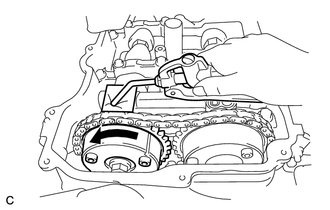

        GTY290869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • If air leaks out, reattach the adhesive tape.
        • Cover the oil hole with a piece of cloth when applying air pressure to prevent oil from spraying.
      4. Forcibly turn the camshaft timing gear assembly in the advance direction (counterclockwise).

        HINT:

        • Depending on the air pressure applied, the camshaft timing gear assembly may turn in the advance direction without assistance by hand.
        • If enough air pressure cannot be applied because of air leakage from the port, releasing the lock pin may be difficult.
      5. Remove the adhesive tape from the No. 1 camshaft bearing cap.
    9. Using a wrench to hold the hexagonal portion of the camshaft, install the bolt.

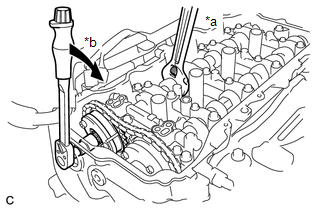

      GTY444684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn

      Torque: 85 N*m (867 kgf*cm, 63 ft.*lbf)

      NOTE:

      Be careful not to damage the cylinder head sub-assembly or spark plug tube with the wrench.

    10. Check that both timing marks on the camshaft timing gear assembly and camshaft timing exhaust gear assembly are facing upward as shown in the illustration.

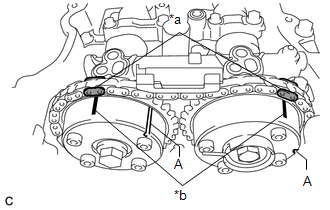

      GTY440363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark
      *b Timing Mark

      HINT:

      • "A" is not a timing mark.
      • Perform "Inspection After Repair" after replacing the camshaft timing gear assembly.

        Refer to INITIALIZATION [12/2013 - ]

  10. ADD ENGINE OIL

    See step  17

  11. INSTALL TIMING CHAIN GUIDE

    See step  23

  12. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY
    1. Turn the crankshaft pulley approximately 10° clockwise.

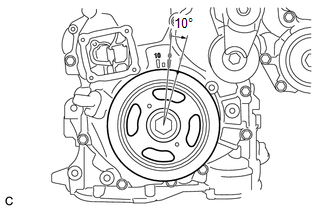

      GTY449293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install a new gasket and the No. 1 chain tensioner assembly with the 2 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:

      Make sure not to drop the gasket inside the timing chain cover sub-assembly.

    3. Remove the pin from the stopper plate.
  13. SET NO. 1 CYLINDER TO TDC/COMPRESSION
    1. Turn the crankshaft pulley until its timing notch (groove) and the timing mark "0" of the timing chain cover sub-assembly are aligned.

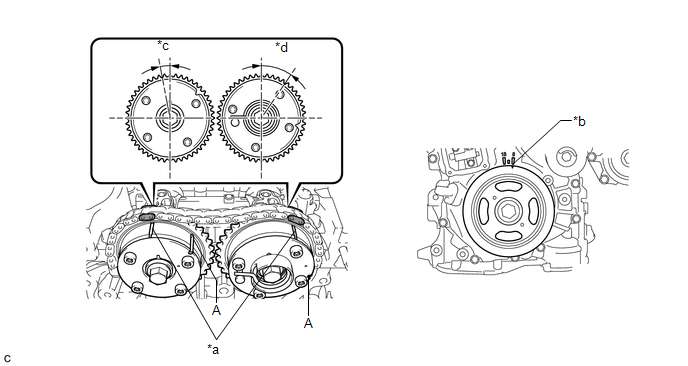

      GTY445656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Timing Mark *b Timing Notch
      *c Approximately 7° *d Approximately 32°
    2. Check that both timing marks on the camshaft timing gear assembly and camshaft timing exhaust gear assembly are facing upward as shown in the illustration. If not, turn the crankshaft 1 revolution (360°) to align the timing marks as shown in the illustration.

      HINT:

      "A" is not a timing mark.

  14. INSTALL TIMING CHAIN COVER PLATE
    1. Install a new gasket and the timing chain cover plate with the 4 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  15. INSTALL TIMING CHAIN COVER TIGHT PLUG

    Refer to PROCEDURE - Step 40 , or refer to PROCEDURE - Step 40

  16. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 45 , or refer to PROCEDURE - Step 45

  17. INSTALL IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  18. CONNECT ENGINE WIRE
    1. Install the engine wire to the engine assembly with the 3 bolts and 4 nuts.

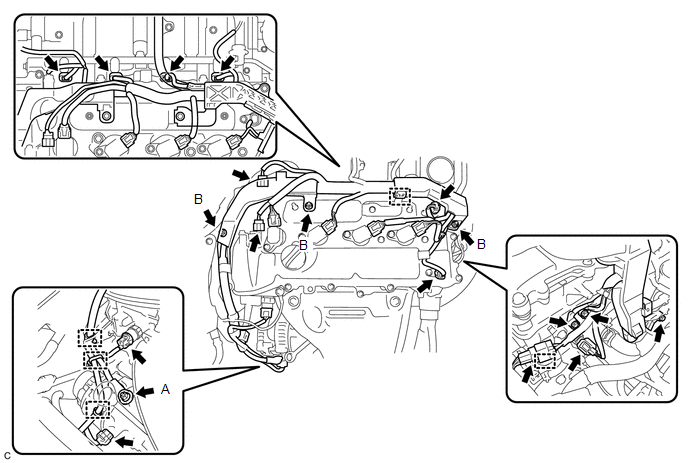

      GTY426419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Nut (A)

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

      Nut (B)

      Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

      Bolt

      Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

    2. Connect the 12 connectors and 5 clamps.
    3. Engage the 2 claws to connect the inlet heater water hose and outlet heater water hose A.
  19. INSTALL ENGINE MOVING CONTROL ROD

    See step  33

  20. INSTALL NO. 2 ENGINE MOUNTING STAY RH

    See step  35

  21. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    See step  49

  22. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    See step  50

  23. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 4

  24. INSTALL INLET AIR CLEANER ASSEMBLY

    See step  52

  25. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    See step  67

  26. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 4

  27. INSTALL RADIATOR SIDE SEAL RH

    Refer to PROCEDURE - Step 5

  28. INSTALL RADIATOR SIDE DEFLECTOR SEAL LH

    Refer to PROCEDURE - Step 6

  29. INSTALL RADIATOR SIDE SEAL RH

    Refer to PROCEDURE - Step 5

  30. INSTALL RADIATOR SIDE DEFLECTOR SEAL LH

    Refer to PROCEDURE - Step 6

  31. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2013 - 11/2016]

  32. INSPECT FOR OIL LEAK

    Refer to PROCEDURE - Step 2

  33. INSTALL FRONT FENDER APRON SEAL RH

    See step  76

  34. INSTALL FRONT FENDER LINER RH

    See step  78

  35. INSTALL NO. 1 ENGINE UNDER COVER

    See step  81

  36. INSTALL FRONT WHEEL RH

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
