Components [12/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

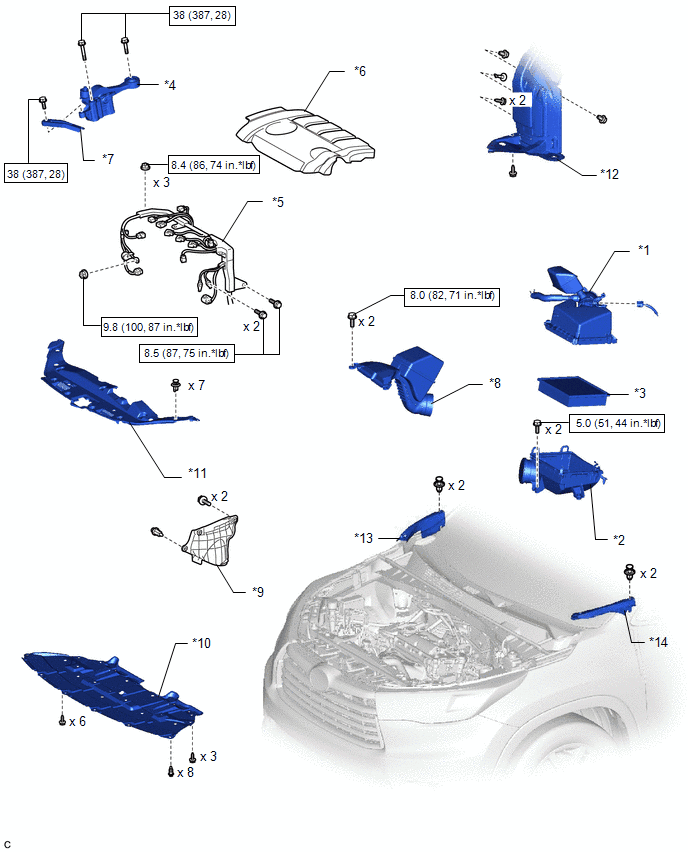

| Callout | Description | Callout | Description |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *4 | ENGINE MOVING CONTROL ROD |
| *5 | ENGINE WIRE | *6 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *7 | NO. 2 ENGINE MOUNTING STAY RH | *8 | INLET AIR CLEANER ASSEMBLY |
| *9 | FRONT FENDER APRON SEAL RH | *10 | NO. 1 ENGINE UNDER COVER |
| *11 | COOL AIR INTAKE DUCT SEAL | *12 | FRONT FENDER LINER RH |
| *13 | RADIATOR SIDE SEAL RH | *14 | RADIATOR SIDE DEFLECTOR SEAL LH |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

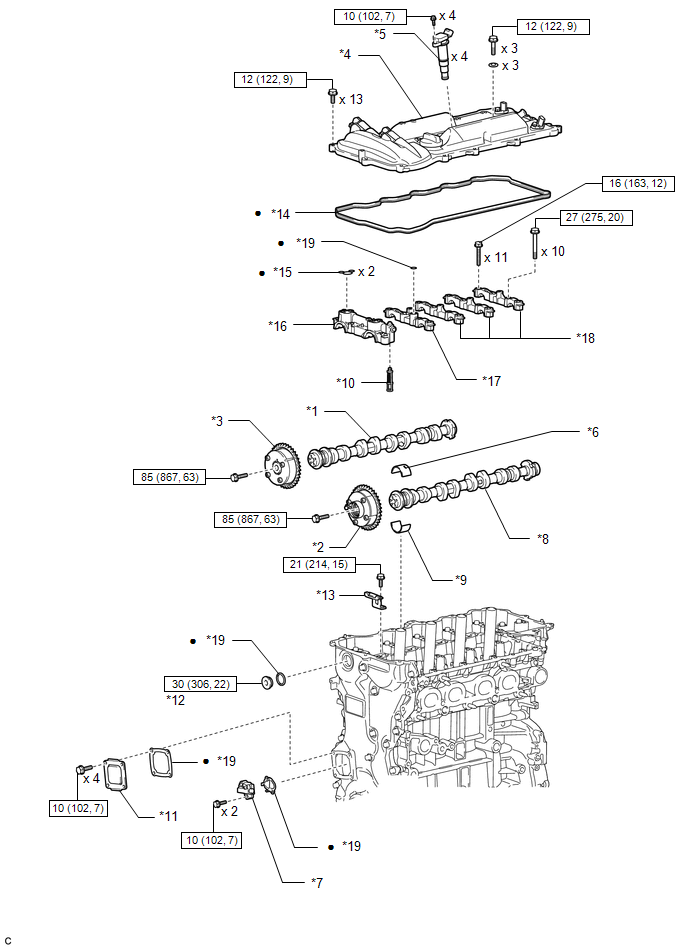

| Callout | Description | Callout | Description |
| *1 | CAMSHAFT | *2 | CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
| *3 | CAMSHAFT TIMING GEAR ASSEMBLY | *4 | CYLINDER HEAD COVER SUB-ASSEMBLY |
| *5 | IGNITION COIL ASSEMBLY | *6 | NO. 1 CAMSHAFT BEARING |
| *7 | NO. 1 CHAIN TENSIONER ASSEMBLY | *8 | NO. 2 CAMSHAFT |
| *9 | NO. 2 CAMSHAFT BEARING | *10 | OIL CONTROL VALVE FILTER |
| *11 | TIMING CHAIN COVER PLATE | *12 | TIMING CHAIN COVER TIGHT PLUG |
| *13 | TIMING CHAIN GUIDE | *14 | CYLINDER HEAD COVER GASKET |
| *15 | CAMSHAFT BEARING CAP OIL HOLE GASKET | *16 | NO. 1 CAMSHAFT BEARING CAP |
| *17 | NO. 2 CAMSHAFT BEARING CAP | *18 | NO. 3 CAMSHAFT BEARING CAP |
| *19 | GASKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
