DTC P2810: Pressure Control Solenoid "G" Electrical (Shift Solenoid Valve SL4) [12/2013 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- CHECK HARNESS AND CONNECTOR (SHIFT SOLENOID VALVE SL4 CIRCUIT)
- Disconnect the ECM connector.
*a Front view of wire harness connector
(to ECM) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition C1-9 (SL4+) - C1-8 (SL4-) 20°C (68°F) 5.0 to 5.6 Ω C1-9 (SL4+) - Body ground and other terminals Always 10 kΩ or higher C1-8 (SL4-) - Body ground and other terminals Always 10 kΩ or higher Result
Proceed to OK NG
Result: 1
OK
REPLACE ECM. Refer to COMPONENTS [12/2013 - 11/2016] Refer to COMPONENTS [11/2016 - ]
Result: 2
NG
See step 2
- Disconnect the ECM connector.
- CHECK HARNESS AND CONNECTOR (ECM - WIRING HARNESS CONNECTOR)
- Disconnect the connector from the wiring harness connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition C1-9 (SL4+) - C2-21 (SL4+) Always Below 1 Ω C1-8 (SL4-) - C2-20 (SL4-) Always Below 1 Ω C1-9 (SL4+) or C2-21 (SL4+) - Body ground and other terminals Always 10 kΩ or higher C1-8 (SL4-) or C2-20 (SL4-) - Body ground and other terminals Always 10 kΩ or higher Result
Proceed to OK NG
Result: 2
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result: 1
OK
See step 3
- INSPECT TRANSMISSION WIRE (SL4)
- Remove the wiring harness connector from the automatic transaxle.

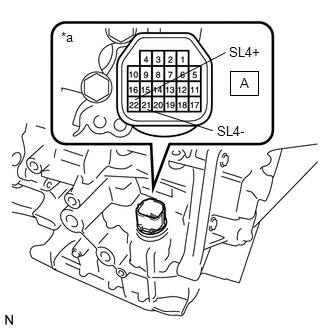

*a Component without harness connected
(Transmission Wire) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A-22 (SL4+) - A-21 (SL4-) 20°C (68°F) 5.0 to 5.6 Ω A-22 (SL4+) - Body ground and other terminals Always 10 kΩ or higher A-21 (SL4-) - Body ground and other terminals Always 10 kΩ or higher Result
Proceed to OK NG
Result: 1
OK
REPLACE WIRING HARNESS CONNECTOR. Refer to COMPONENTS [12/2013 - 11/2016] Refer to COMPONENTS [11/2016 - ]
Result: 2
NG
See step 4
- Remove the wiring harness connector from the automatic transaxle.
- INSPECT SHIFT SOLENOID VALVE SL4
- Remove shift solenoid valve SL4.
*1 Shift Solenoid Valve SL4 - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 5.0 to 5.6 Ω - Connect a battery positive (+) lead with a 21 W bulb to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating sound.
OK
Valve moves and makes an operating sound.
Result
Proceed to OK NG
Result: 1
OK
REPLACE TRANSMISSION WIRE. Refer to COMPONENTS [12/2013 - ]
Result: 2
NG
REPLACE SHIFT SOLENOID VALVE SL4. Refer to COMPONENTS [12/2013 - 08/2014] Refer to COMPONENTS [08/2014 - 11/2016] Refer to COMPONENTS [11/2016 - ]
- Remove shift solenoid valve SL4.
