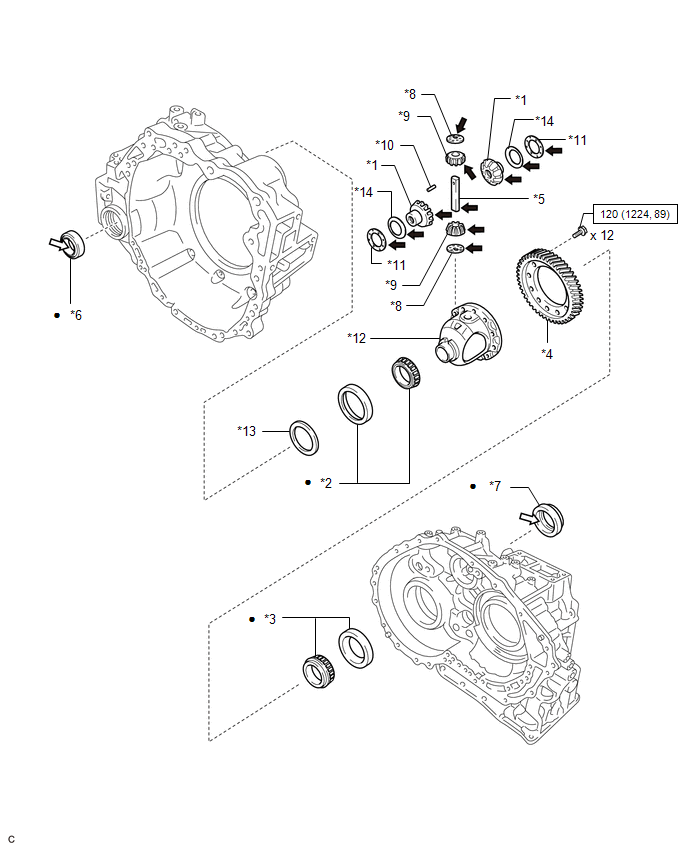

Components [08/2014 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
| Callout | Description | Callout | Description |
| *1 | DIFFERENTIAL SIDE GEAR | *2 | FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING |
| *3 | FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING | *4 | FRONT DIFFERENTIAL RING GEAR |
| *5 | FRONT NO. 1 DIFFERENTIAL PINION SHAFT | *6 | FRONT DRIVE SHAFT OIL SEAL RH |
| *7 | FRONT DRIVE SHAFT OIL SEAL LH | *8 | FRONT DIFFERENTIAL PINION THRUST WASHER |
| *9 | FRONT DIFFERENTIAL PINION | *10 | FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN |
| *11 | FRONT NO. 1 DIFFERENTIAL SIDE GEAR THRUST WASHER | *12 | FRONT DIFFERENTIAL CASE |
| *13 | SHIM | *14 | CONICAL SPRING |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| ATF WS | MP grease |
