Removal [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [12/2013 - 11/2016]

  2. REMOVE TRANSMISSION WIRE
    1. Disconnect the shift solenoid valve SL connector.

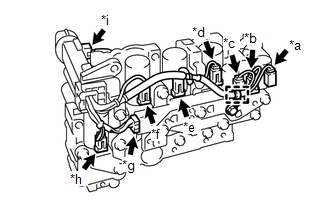

      GTY437552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Shift Solenoid Valve SL Connector
      *b Shift Solenoid Valve SLT Connector
      *c Shift Solenoid Valve SLU Connector
      *d Shift Solenoid Valve SL2 Connector
      *e Shift Solenoid Valve SL1 Connector
      *f Shift Solenoid Valve SL3 Connector
      *g Oil Pressure Switch Assembly Connector
      *h Shift Solenoid Valve SL4 Connector
      *i Revolution Sensor Connector
    2. Disconnect the shift solenoid valve SLT connector.
    3. Disconnect the shift solenoid valve SLU connector.
    4. Disconnect the shift solenoid valve SL2 connector.
    5. Disconnect the shift solenoid valve SL1 connector.
    6. Disconnect the shift solenoid valve SL3 connector.
    7. Disconnect the shift solenoid valve SL4 connector.
    8. Disconnect the oil pressure switch assembly connector.
    9. Disconnect the revolution sensor connector.
    10. Disconnect the transmission wire clamp.
    11. Remove the bolt, lock plate and transmission wire from the transmission valve body assembly.

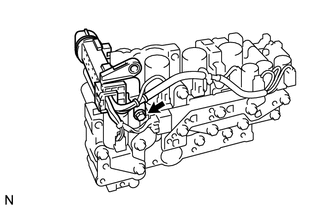

      GTY321101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
