Components [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different variant/trim than selected.

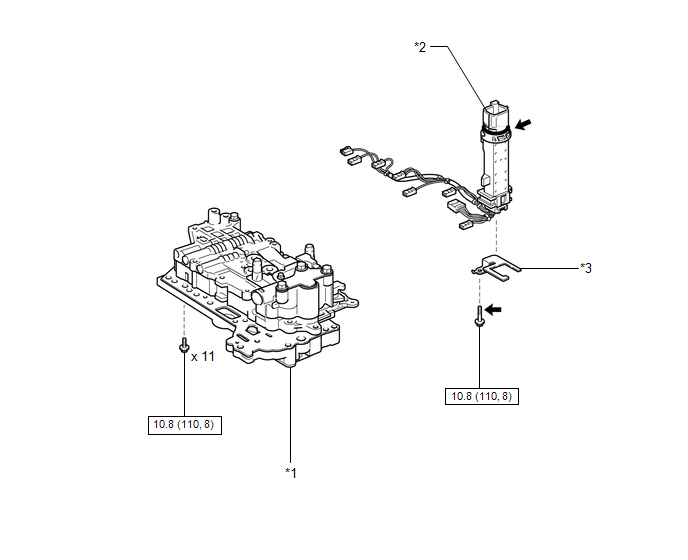

Fig 1: Transmission Wire Replacement Components With Torque Specifications
GTY432690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSMISSION VALVE BODY ASSEMBLY *2 TRANSMISSION WIRE
*3 LOCK PLATE - -
N*m (kgf*cm, ft.*lbf): Specified torque ATF WS
