Components [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different variant/trim than selected.

Fig 1: Differential Oil Seal Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT FENDER APRON SEAL LH	*2	FRONT FENDER LINER LH
*3	NO. 1 ENGINE UNDER COVER	-	-

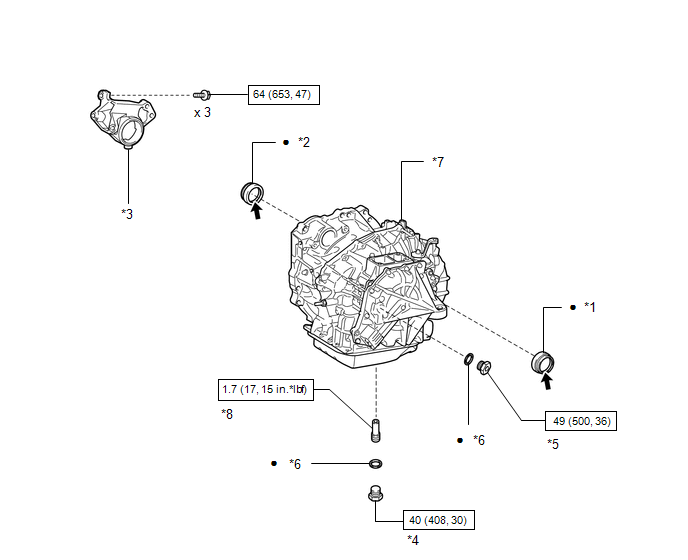

Fig 1: Differential Oil Seal Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	FRONT DRIVE SHAFT OIL SEAL LH	*2	FRONT DRIVE SHAFT OIL SEAL RH
*3	REAR ENGINE MOUNTING BRACKET	*4	OVERFLOW PLUG
*5	REFILL PLUG	*6	REFILL PLUG
*7	AUTOMATIC TRANSAXLE ASSEMBLY	*8	NO. 1 TRANSMISSION OIL FILLER TUBE
	Nm (kgfcm, ft.*lbf): Specified torque	•	Nm (kgfcm, ft.*lbf): Specified torque
	MP grease	-	-
