INSTALL OIL COOLER BRACKET
HINT:

Perform this procedure only when replacement of the oil cooler bracket is necessary.
1. Temporarily install the oil cooler bracket to the body with the bolt.

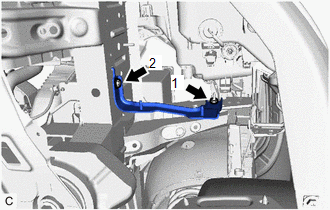

2. Install the nut and bolt in the order shown in the illustration.

  Fig 1: Tightening Sequence Of Oil Cooler Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
INSTALL OIL COOLER ASSEMBLY
1. Install the oil cooler assembly to the oil cooler bracket with the 2 nuts.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)
2. Connect the No. 1 oil cooler outlet hose and No. 3 transmission oil cooler hose to the oil cooler assembly and slide the 2 clips to secure them.

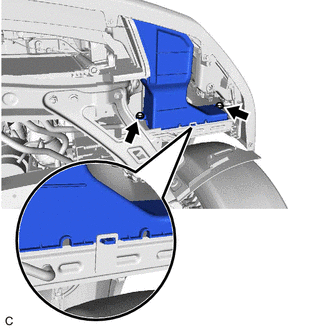

INSTALL TRANSMISSION OIL COOLER AIR DUCT

Install the transmission oil cooler air duct to the oil cooler assembly with the 2 bolts.

Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

HINT:

Insert the protrusion on the underside of the transmission oil cooler air duct into the bracket hole on the underside of the oil cooler assembly.
