Components [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different variant/trim than selected.

Fig 1: Air Cooled Oil Cooler Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT FENDER APRON SEAL LH	*2	FRONT FENDER LINER LH
*3	NO. 1 ENGINE UNDER COVER	-	-

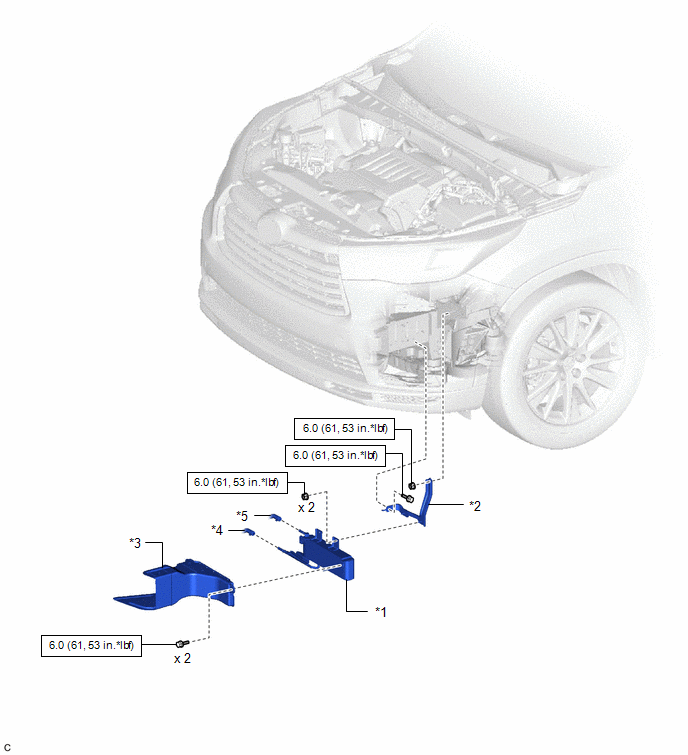

Fig 1: Air Cooled Oil Cooler Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	OIL COOLER ASSEMBLY	*2	OIL COOLER BRACKET
*3	TRANSMISSION OIL COOLER AIR DUCT	*4	NO. 1 OIL COOLER OUTLET HOSE
*5	NO. 3 TRANSMISSION OIL COOLER HOSE	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
