Removal [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE RADIATOR SIDE DEFLECTOR SEAL LH
Refer to PROCEDURE - Step 1 , or refer to PROCEDURE - Step 1
REMOVE RADIATOR SIDE SEAL RH
Refer to PROCEDURE - Step 2 , or refer to PROCEDURE - Step 2
REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 3 , or refer to PROCEDURE - Step 3
REMOVE INLET AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 25 , or refer to PROCEDURE - Step 25
REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8
SEPARATE FRONT FENDER LINER LH
Refer to PROCEDURE - Step 11 , or refer to PROCEDURE - Step 11
REMOVE FRONT FENDER APRON SEAL LH
Refer to PROCEDURE - Step 13 , or refer to PROCEDURE - Step 13
DRAIN AUTOMATIC TRANSAXLE FLUID
See step 4
DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 1 , or refer to PROCEDURE - Step 1

REMOVE TRANSMISSION OIL COOLER

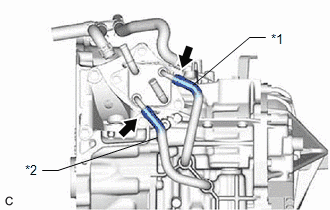

Slide the 2 clips and disconnect the No. 3 water by-pass hose and No. 4 water by-pass hose from the transmission oil cooler.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	No. 3 Water By-pass Hose
*2	No. 4 Water By-pass Hose

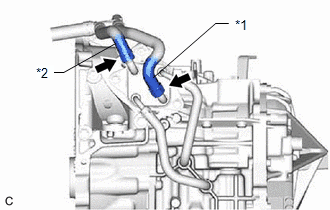

Slide the 2 clips and disconnect the outlet No. 1 oil cooler hose and inlet No. 1 oil cooler hose from the transmission oil cooler.

*1	Outlet No. 1 Oil Cooler Hose
*2	Inlet No. 1 Oil Cooler Hose

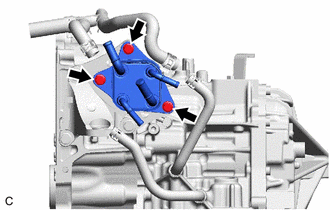

Remove the 3 bolts and transmission oil cooler from the front engine mounting bracket.
