Parts Location [12/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
| *1 | TRANSMISSION FLOOR SHIFT ASSEMBLY | *2 | COMBINATION METER ASSEMBLY |
| *3 | TRANSMISSION CONTROL SWITCH | *4 | DLC3 |
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | PATTERN SELECT SWITCH ASSEMBLY (SNOW MODE SWITCH) |

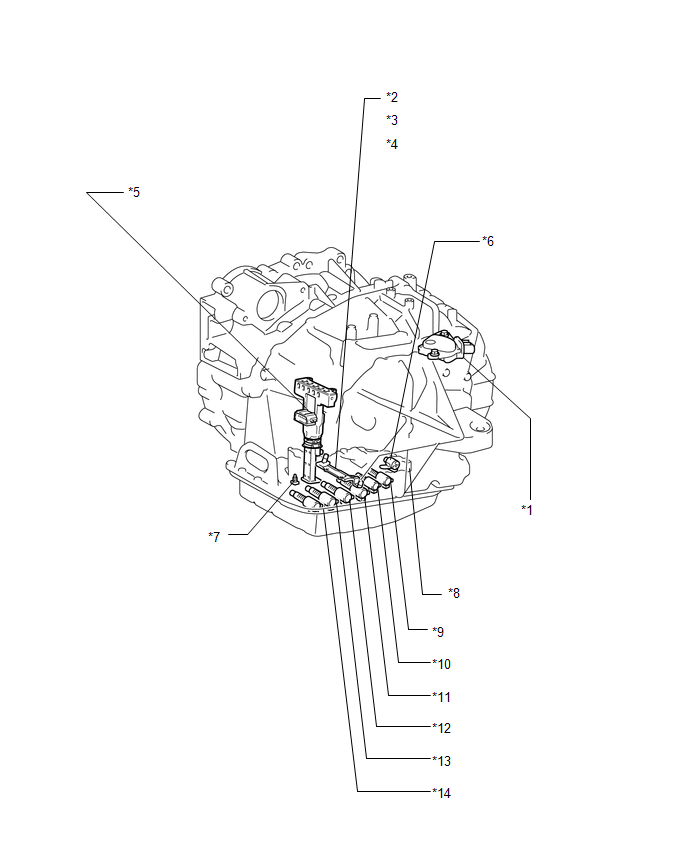

| *1 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *2 | TRANSMISSION REVOLUTION SENSOR |
| *3 | INPUT SPEED SENSOR NT | *4 | OUTPUT SPEED SENSOR NC |
| *5 | WIRING HARNESS CONNECTOR | *6 | SHIFT SOLENOID VALVE SL |
| *7 | TRANSMISSION WIRE (ATF TEMPERATURE SENSOR) |
*8 | VALVE BODY ASSEMBLY |
| *9 | SHIFT SOLENOID VALVE SLT | *10 | SHIFT SOLENOID VALVE SLU |
| *11 | SHIFT SOLENOID VALVE SL2 | *12 | SHIFT SOLENOID VALVE SL1 |
| *13 | SHIFT SOLENOID VALVE SL3 | *14 | SHIFT SOLENOID VALVE SL4 |
