Parts Location [12/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

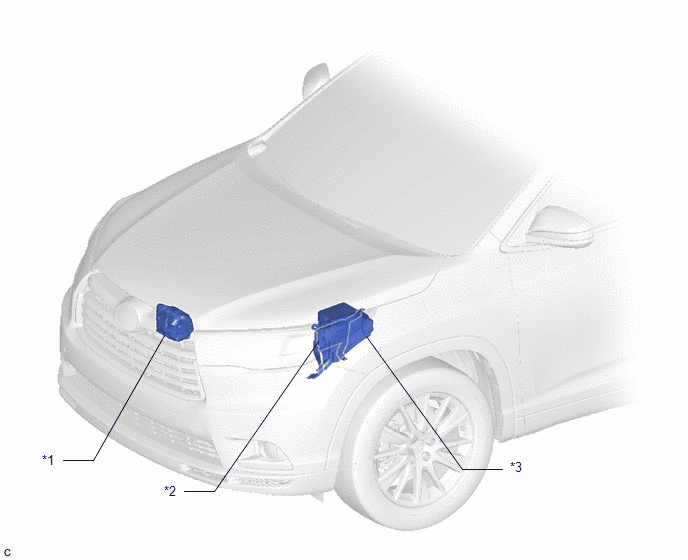

Fig 1: Charging System Components Location
GTY451270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 GENERATOR ASSEMBLY *2 ECM
*3 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- ALT-S FUSE
- ALT FUSE		 - -

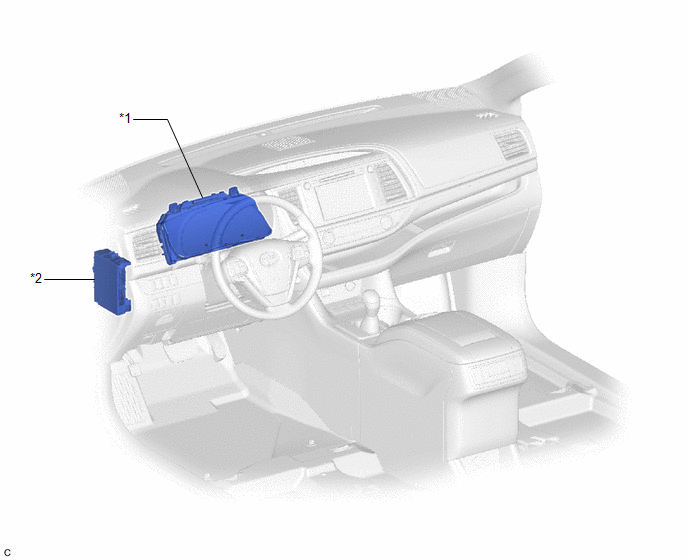

Fig 1: Charging System Components Location (Interior)
GTY445645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION METER ASSEMBLY *2 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- IG1 NO. 1 FUSE
