VC Output Circuit [12/2013 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

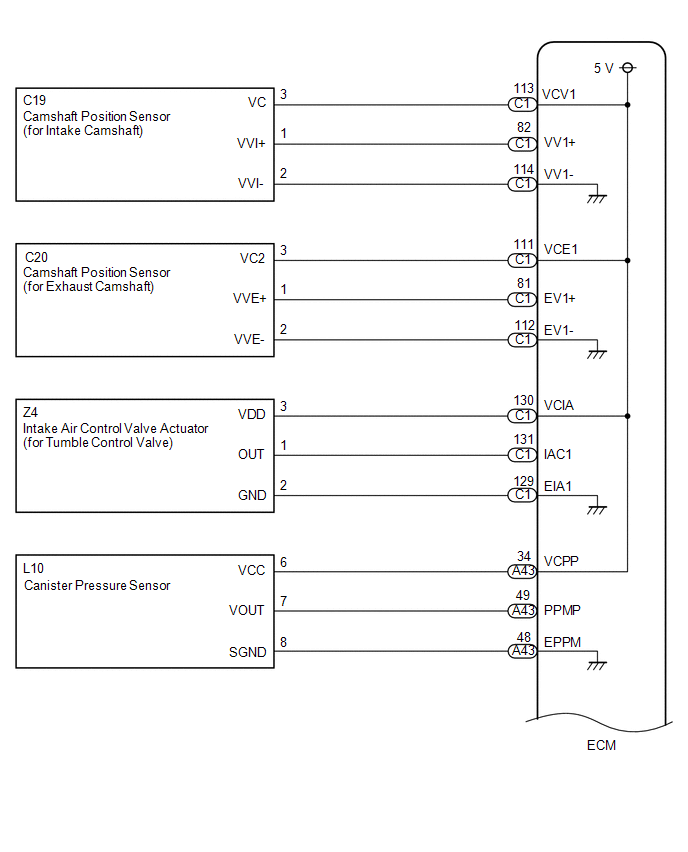

GTY711036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

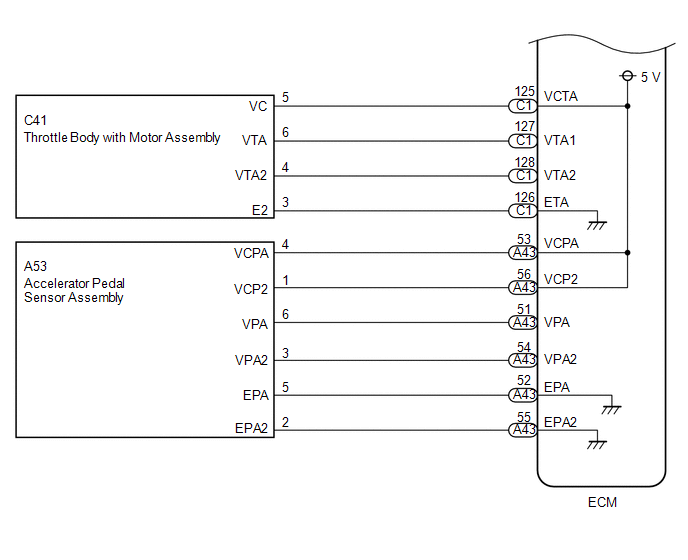

GTY441062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
