DTC P0504: Brake Switch "A" / "B" Correlation [11/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK TERMINAL VOLTAGE (POWER SOURCE OF STOP LIGHT SWITCH ASSEMBLY)
    GTY700058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Stop Light Switch Assembly)
    1. Disconnect the stop light switch assembly connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A86-7 (B) - Body ground Always 11 to 14 V
      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - STOP LIGHT SWITCH ASSEMBLY)

    Result:

    OK

    See step  2

  2. CHECK TERMINAL VOLTAGE (POWER SOURCE OF STOP LIGHT SWITCH ASSEMBLY)
    GTY700057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Stop Light Switch Assembly)
    1. Disconnect the stop light switch assembly connector.
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A86-6 (B) - Body ground Ignition switch ON 11 to 14 V
      Proceed to
      OK
      NG

    Result:

    NG

    See step  6

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - BODY GROUND)
    1. Disconnect the stop light switch assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A86-2 (GND) - Body ground Always Below 1 Ω
      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK TERMINAL VOLTAGE (STP AND ST1- VOLTAGE)
    1. Disconnect the ECM connector.

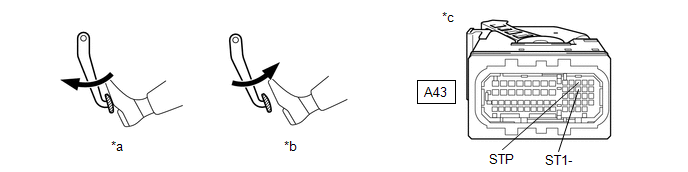

      GTY446196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Brake Pedal Depressed *b Brake Pedal Released
      *c Front view of wire harness connector
      (to ECM)      		 - -
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A43-24 (ST1-) - Body ground Brake pedal released 7.5 to 14 V
      Brake pedal depressed Below 1.5 V
      A43-11 (STP) - Body ground Brake pedal released Below 1.5 V
      Brake pedal depressed 7.5 to 14 V
      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM.

    Refer to  REMOVAL [12/2013 - ]

    Result:

    NG

    See step  5

  5. CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - ECM)
    1. Disconnect the stop light switch assembly connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A86-3 (L) - A43-11 (STP) Always Below 1 Ω
      A86-5 (L) - A43-24 (ST1-) Always Below 1 Ω
      A86-3 (L) or A43-11 (STP) - Body ground Always 10 kΩ or higher
      A86-5 (L) or A43-24 (ST1-) - Body ground Always 10 kΩ or higher
      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE STOP LIGHT SWITCH ASSEMBLY.

    Refer to  REMOVAL [12/2013 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - ECM)

  6. CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - SEMICONDUCTOR PWR INTEGRATION ECU)
    1. Disconnect the semiconductor pwr integration ECU connector.
    2. Disconnect the stop light switch assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A86-6 (B) - 1F-4 Always Below 1 Ω
      A86-6 (B) or 1F-4 - Body ground Always 10 kΩ or higher
      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE SEMICONDUCTOR PWR INTEGRATION ECU.

    Refer to  REMOVAL [12/2013 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
