Parts Location [12/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

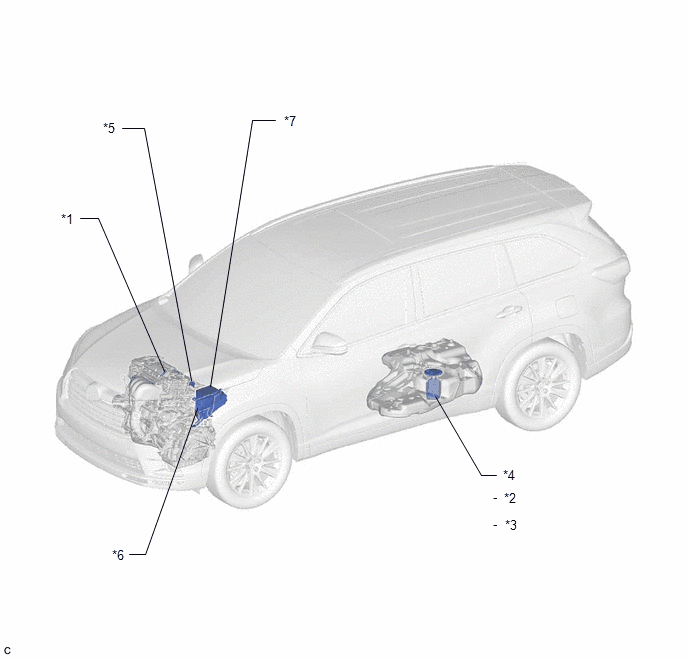

| *1 |
FUEL INJECTOR ASSEMBLY |
*2 |
FUEL PUMP |
| *3 |
FUEL SENDER GAUGE ASSEMBLY |
*4 |
FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
| *5 |
FUEL PRESSURE PULSATION DAMPER ASSEMBLY |
*6 |
ECM |
| *7 |
ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- C/OPN RELAY
- INJ FUSE
- IG2-EFI FUSE |
- |
- |
