Components [12/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

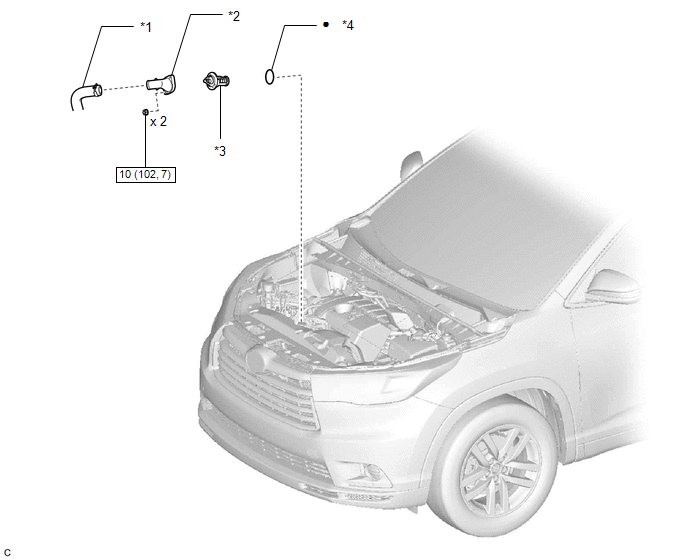

Fig 1: Thermostat Replacement Components With Torque Specifications
GTY438341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 RADIATOR HOSE *2 WATER INLET
*3 THERMOSTAT *4 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
