Components [12/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Cooling Fan Motor Replacement Components (1 Of 4)
GTY444553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ENGINE UNDER COVER - -

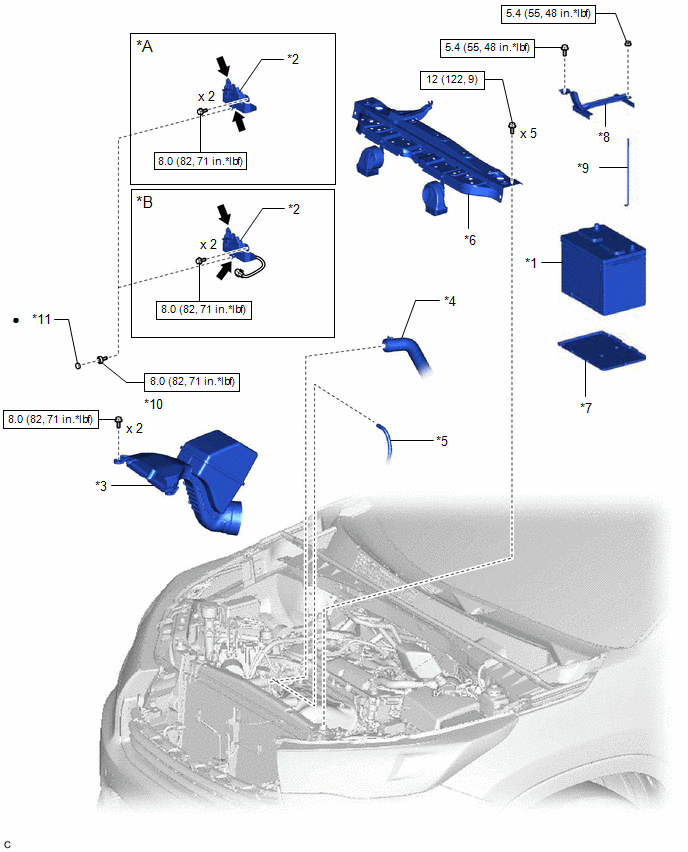

Fig 1: Cooling Fan Motor Replacement Components With Torque Specifications (2 Of 4)
GTY449192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/o Engine Hood Courtesy Switch *B w/ Engine Hood Courtesy Switch
*1 BATTERY *2 HOOD LOCK ASSEMBLY
*3 INLET AIR CLEANER ASSEMBLY *4 NO. 1 RADIATOR HOSE
*5 RADIATOR RESERVE TANK HOSE *6 UPPER RADIATOR SUPPORT SUB-ASSEMBLY
*7 BATTERY TRAY *8 BATTERY CLAMP
*9 BATTERY CLAMP BOLT *10 HOOD LOCK BOLT
*11 HOOD LOCK NUT CAP - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease - -

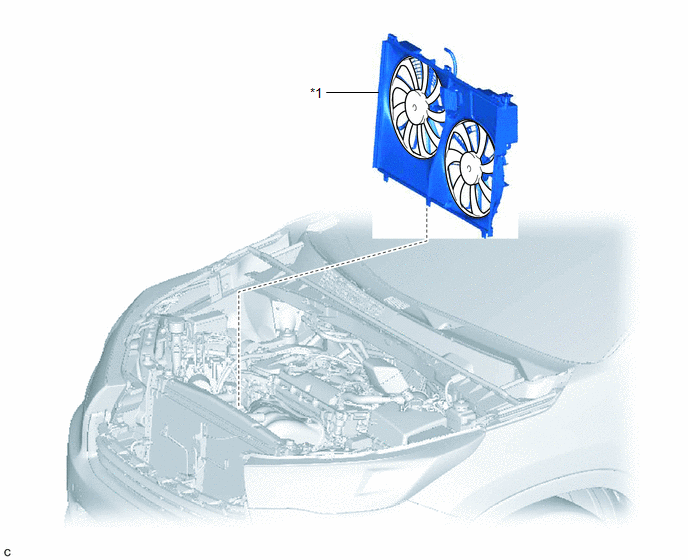

Fig 1: Cooling Fan Motor Replacement Components (3 Of 4)
GTY451310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FAN SHROUD ASSEMBLY - -

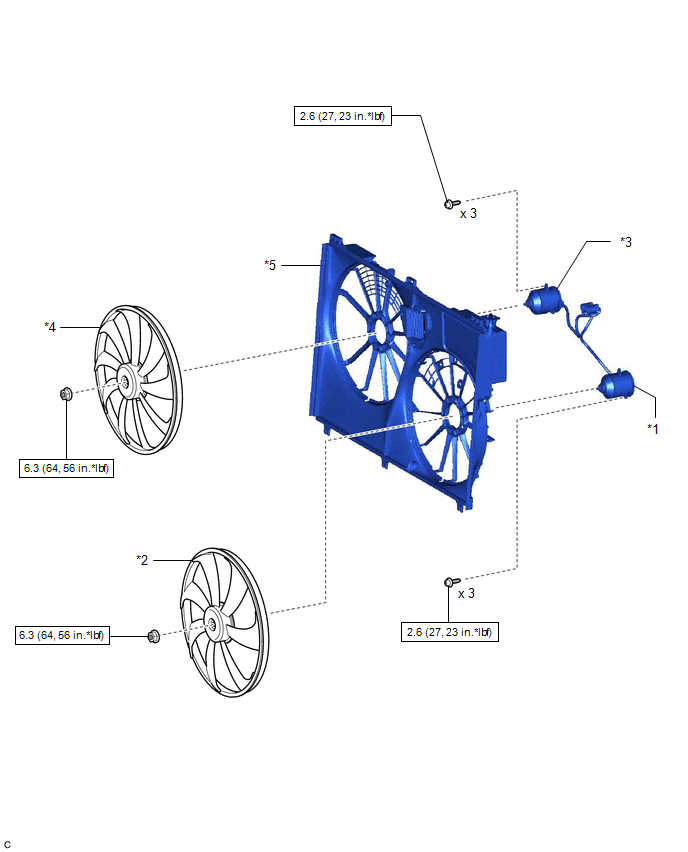

Fig 1: Cooling Fan Motor Replacement Components With Torque Specifications (4 Of 4)
GTY450133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COOLING FAN MOTOR *2 FAN
*3 NO. 2 COOLING FAN MOTOR *4 NO. 2 FAN
*5 FAN SHROUD - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
