Disassembly [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE WIRE HARNESS
    1. Open the 2 terminal caps.
      GTY691518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and wire harness from the starter assembly.
  2. REMOVE HARNESS

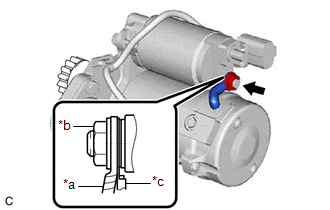

    1. Remove the nut and disconnect the lead wire from terminal M.
      GTY698996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lead Wire
      *b Nut
      *c Noise Filter Harness
    2. Disconnect the noise filter harness from the repair service starter kit.

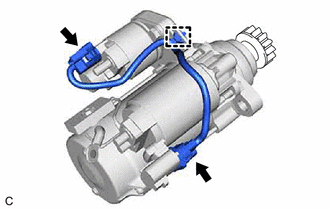

    3. Disengage the harness clamp.
      GTY732005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the 2 harness connectors to remove the harness.
  3. REMOVE STARTER INRUSH CURRENT REDUCTION RELAY
    1. Remove the 2 bolts and starter inrush current reduction relay from the starter drive housing assembly.
      GTY691520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

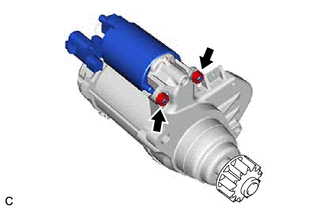

  4. REMOVE REPAIR SERVICE STARTER KIT
    1. While holding the repair service starter kit to the starter drive housing assembly, remove the 2 nuts.
      GTY691521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. While lifting the rear of the magnet switch, remove the hook from the pinion drive lever, then remove the repair service starter kit.
      GTY737920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Plunger
      *b Hook
      *c Pinion Drive Lever
      NOTE:

      Do not drop the plunger when removing the repair service starter kit.

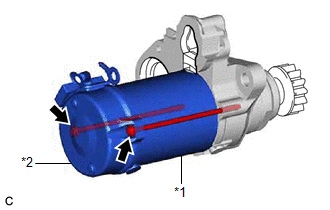

  5. REMOVE STARTER YOKE ASSEMBLY
    1. Using a T25 "TORX" socket wrench, remove the 2 through bolts, and pull out the starter yoke assembly together with the starter commutator end frame assembly.
      GTY723939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Starter Yoke Assembly
      *2 Starter Commutator End Frame Assembly

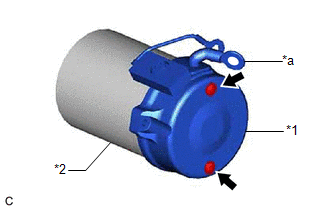

  6. REMOVE STARTER COMMUTATOR END FRAME ASSEMBLY
    1. Remove the 2 screws.
      GTY702073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Starter Commutator End Frame Assembly
      *2 Starter Yoke Assembly
      *a Lead Wire
    2. While holding down the lead wire, remove the starter commutator end frame assembly from the starter yoke assembly.
  7. REMOVE STARTER BRUSH HOLDER ASSEMBLY
    1. Using a screwdriver, hold the brush spring back and disconnect the 4 brushes.
      GTY714566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Brush Spring
      *b Brush
    2. Remove the starter brush holder assembly from the starter armature assembly.
  8. REMOVE STARTER ARMATURE ASSEMBLY
    1. Remove the starter armature assembly from the starter yoke assembly.
      GTY694257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Starter Yoke Assembly
      *2 Starter Armature Assembly

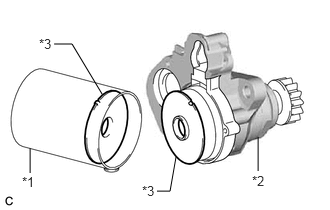

  9. REMOVE STARTER ARMATURE PLATE
    1. Remove the starter armature plate from the starter drive housing assembly or starter yoke assembly.
      GTY708208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Starter Yoke Assembly
      *2 Starter Drive Housing Assembly
      *3 Starter Armature Plate

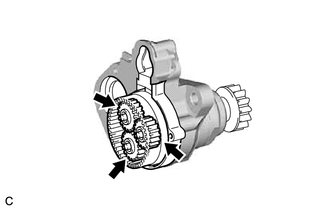

  10. REMOVE PLANETARY GEAR
    1. Remove the 3 planetary gears from the starter drive housing assembly.
      GTY732004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE RUBBER SEAL
    1. Remove the rubber seal from the starter drive housing assembly.
      GTY691505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
