Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

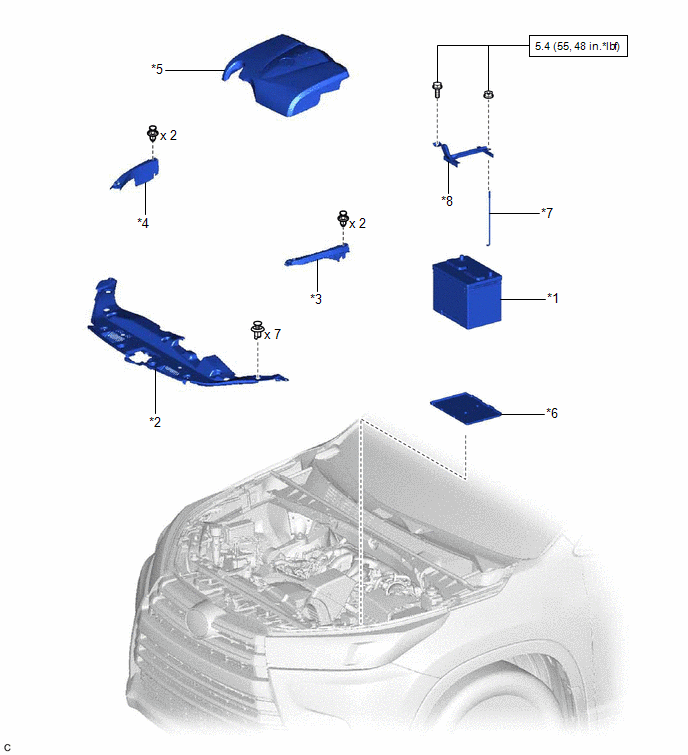

| Callout |
Description |
Callout |
Description |
| *1 |
BATTERY |
*2 |
COOL AIR INTAKE DUCT SEAL |
| *3 |
RADIATOR SIDE DEFLECTOR SEAL LH |
*4 |
RADIATOR SIDE SEAL RH |
| *5 |
V-BANK COVER SUB-ASSEMBLY |
*6 |
BATTERY TRAY |
| *7 |
BATTERY CLAMP BOLT |
*8 |
BATTERY CLAMP |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

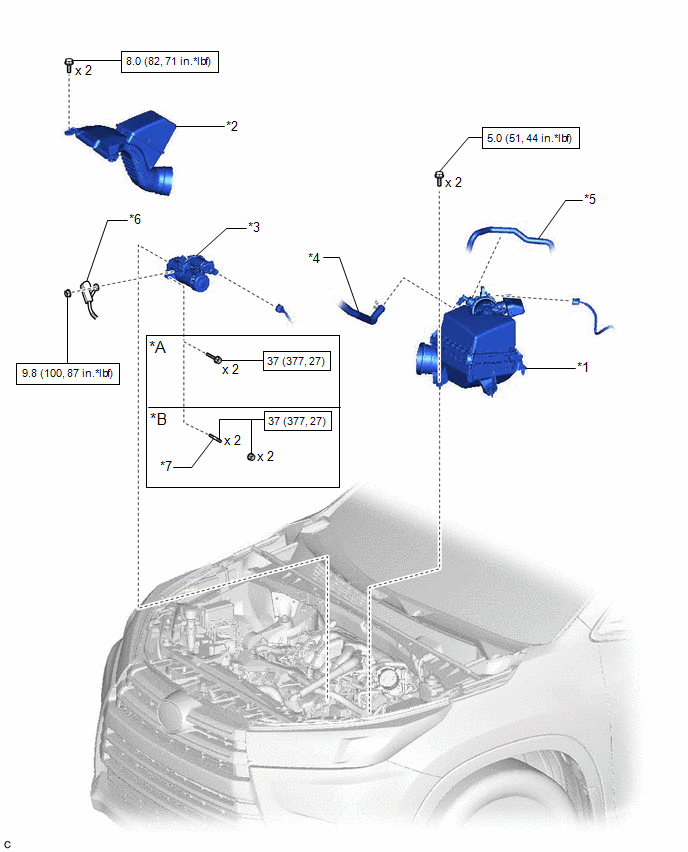

| Callout |
Description |
Callout |
Description |
| *A |
Type A |
*B |
Type B |
| *1 |
AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE |
*2 |
INLET AIR CLEANER ASSEMBLY |
| *3 |
STARTER ASSEMBLY |
*4 |
NO. 2 VENTILATION HOSE |
| *5 |
NO. 1 FUEL VAPOR FEED HOSE |
*6 |
TERMINAL CAP |
| *7 |
STUD BOLT |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

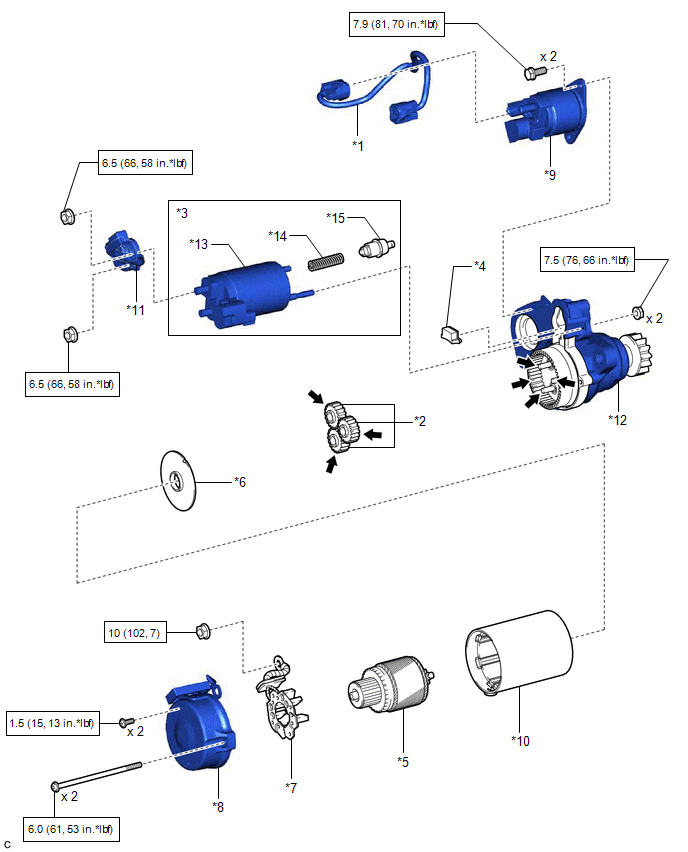

| Callout |
Description |
Callout |
Description |
| *1 |
HARNESS |
*2 |
PLANETARY GEAR |
| *3 |
REPAIR SERVICE STARTER KIT |
*4 |
RUBBER SEAL |
| *5 |
STARTER ARMATURE ASSEMBLY |
*6 |
STARTER ARMATURE PLATE |
| *7 |
STARTER BRUSH HOLDER ASSEMBLY |
*8 |
STARTER COMMUTATOR END FRAME ASSEMBLY |
| *9 |
STARTER INRUSH CURRENT REDUCTION RELAY |
*10 |
STARTER YOKE ASSEMBLY |
| *11 |
WIRE HARNESS |
*12 |
STARTER DRIVE HOUSING ASSEMBLY |
| *13 |
MAGNET SWITCH |
*14 |
RETURN SPRING |
| *15 |
PLUNGER |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
|
High-temperature Grease |
