Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [11/2016 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [11/2016 - ]

  3. REMOVE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  4. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 10

  5. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 11

  6. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 12

  7. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 16

  8. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  9. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  10. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  11. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL WITH AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 23

  12. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  13. REMOVE NO. 2 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 31

  14. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 32

  15. REMOVE CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 33

  16. REMOVE FRONT DOOR SCUFF PLATE RH

    Refer to PROCEDURE - Step 34

  17. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 35

  18. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 36

  19. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 40

  20. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 41

  21. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 42

  22. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Refer to PROCEDURE - Step 43

  23. REMOVE INSTRUMENT CLUSTER FINISH PANEL END

    Refer to PROCEDURE - Step 44

  24. REMOVE INSTRUMENT PANEL FINISH PLATE

    Refer to PROCEDURE - Step 45

  25. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 47

  26. REMOVE ENGINE SWITCH

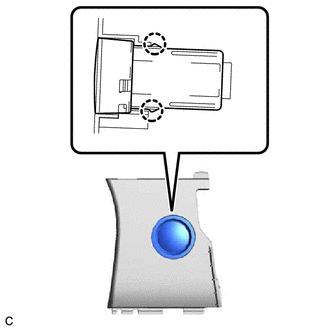

    1. Disengage the 2 claws and remove the engine switch from the No. 1 switch hole base.
      GTY454782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
