Parts Location [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

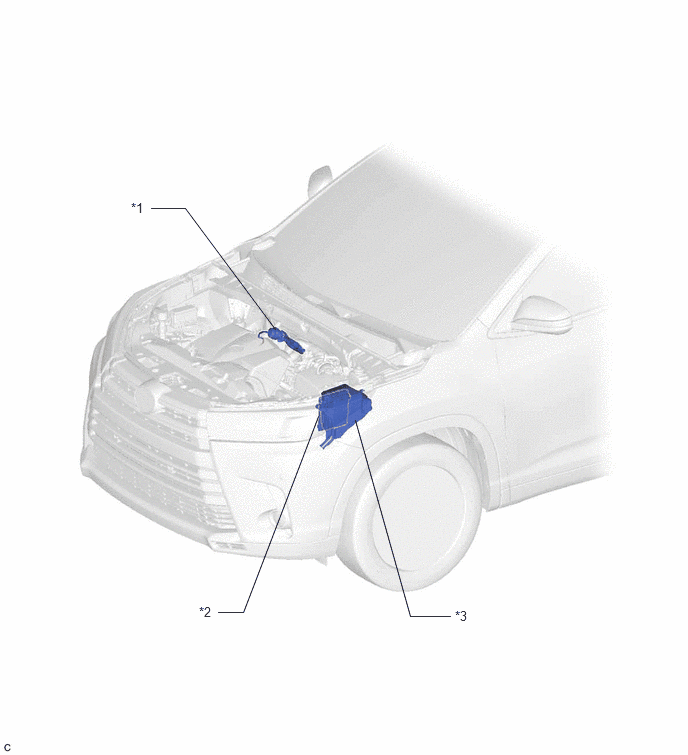

Fig 1: Intake System Components Location
GTY724787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INTAKE AIR CONTROL VALVE (for ACIS) *2 ECM
*3 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- EFI NO. 2 FUSE		 - -
