Parts Location [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

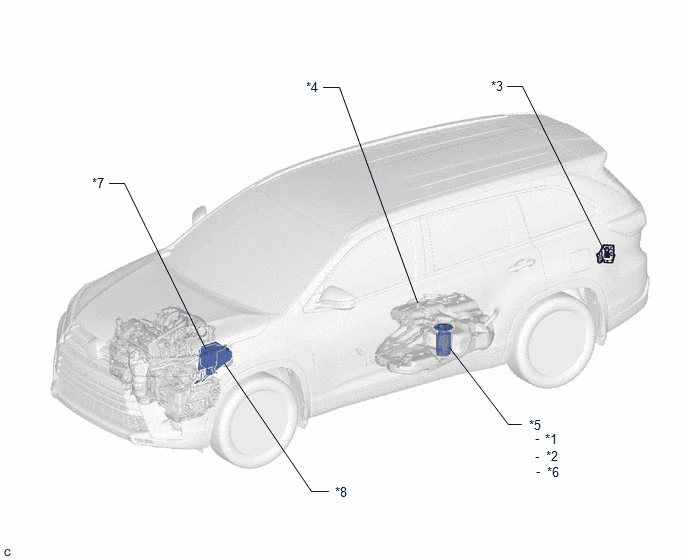

Fig 1: Fuel System Components Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL SENDER GAUGE ASSEMBLY	*2	FUEL PUMP (for Low Pressure)
*3	FUEL PUMP CONTROL ECU	*4	FUEL TANK ASSEMBLY
*5	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY	*6	FUEL MAIN VALVE ASSEMBLY
*7	ECM	*8	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - FUEL PMP RELAY - FUEL PMP FUSE - INJ FUSE - FL MAIN FUSE - EFI NO. 4 FUSE

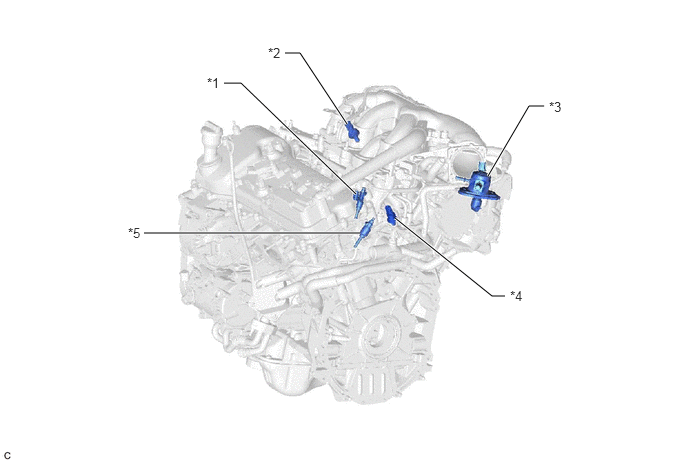

Fig 1: Fuel System Components Location (2 Of 2)

*1	FUEL INJECTOR ASSEMBLY (for Port Injection)	*2	FUEL PRESSURE SENSOR (for Low Pressure)
*3	FUEL PUMP ASSEMBLY (for High Pressure)	*4	FUEL PRESSURE SENSOR (for High Pressure)
*5	FUEL INJECTOR ASSEMBLY (for Direct Injection)	-	-
