Components [11/2016 - ]: Illustration

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

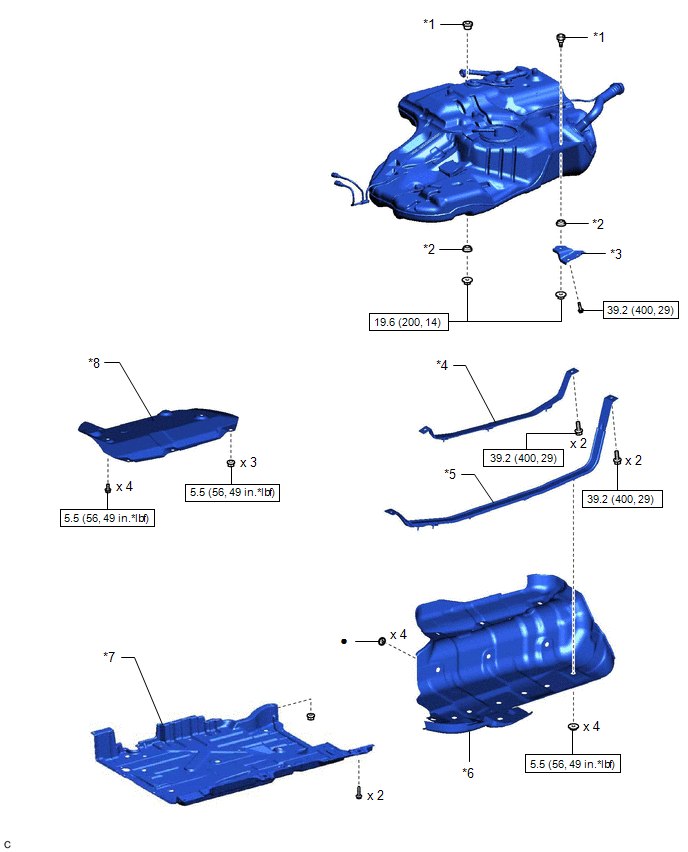

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FUEL TANK CUSHION SET	*2	NO. 5 FUEL TANK CUSHION
*3	REAR FUEL TANK BRACKET LH	*4	NO. 1 FUEL TANK BAND SUB-ASSEMBLY RH
*5	NO. 1 FUEL TANK BAND SUB-ASSEMBLY LH	*6	NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY
*7	FRONT CENTER FLOOR COVER	*8	CHARCOAL CANISTER PROTECTOR
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

Fig 1: Fuel Tank Replacement Components (2 Of 2)

*1	FUEL TANK MAIN TUBE SUB-ASSEMBLY	*2	TANK SUCTION TUBE SUPPORT
*3	FUEL TANK SIDE PLATE	*4	FUEL TANK TO FILLER PIPE HOSE
*5	FUEL TANK BREATHER TUBE	*6	FUEL TANK VENT HOSE SUB-ASSEMBLY
*7	FUEL TANK CUSHION	*8	FUEL TANK BAND PIN
*9	FUEL TANK ASSEMBLY	-	-
•	Non-reusable part	-	-
