Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  2. REMOVE FUEL SENDER GAUGE ASSEMBLY

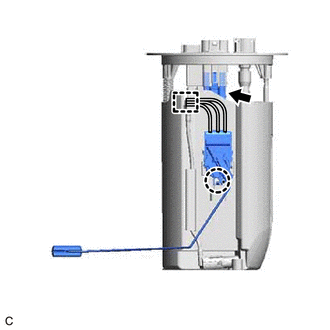

    1. Disconnect the fuel sender gauge assembly connector.
      GTY721815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to disconnect the wire harness.
      NOTE:

      Do not damage the wire harness.

    3. Disengage the claw to remove the fuel sender gauge assembly from the fuel suction tube with pump and gauge assembly.
      NOTE:

      Be careful not to bend the arm of the fuel sender gauge assembly.
