Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

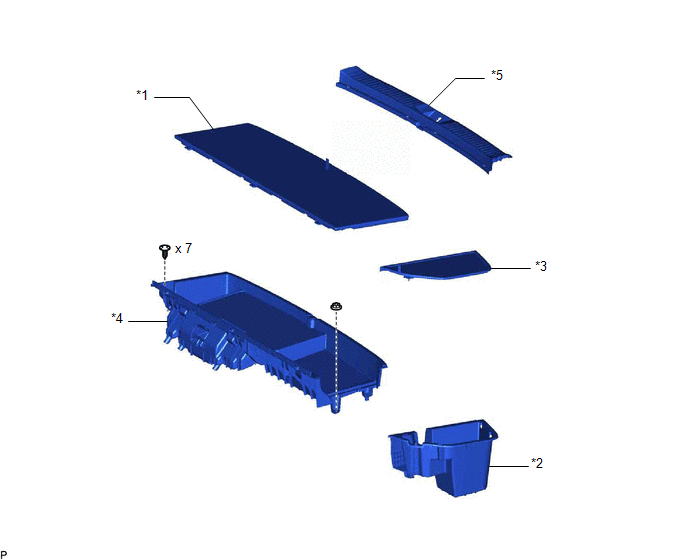

| *1 |
DECK BOARD ASSEMBLY |
*2 |
DECK SIDE TRIM BOX LH |
| *3 |
NO. 3 DECK BOARD SUB-ASSEMBLY |
*4 |
REAR DECK FLOOR BOX |
| *5 |
REAR FLOOR FINISH PLATE |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

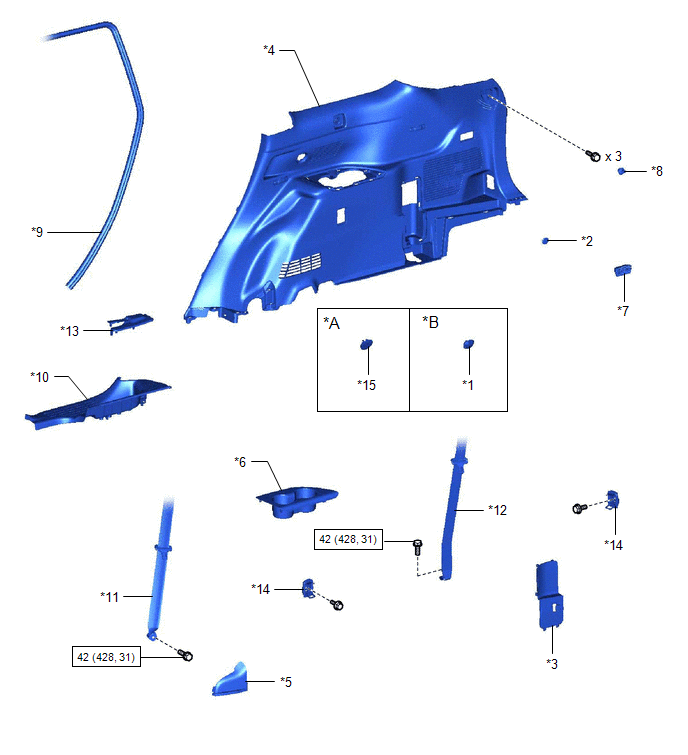

| *1 |
DECK TRIM POCKET COVER |
*2 |
DECK TRIM SIDE PANEL ASSEMBLY LH |
| *3 |
DECK TRIM SIDE SERVICE HOLE COVER |
*4 |
FRONT DECK SIDE TRIM COVER LH |
| *5 |
NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
*6 |
NO. 2 DECK SIDE TRIM COVER |
| *7 |
REAR DOOR OPENING TRIM WEATHERSTRIP LH |
*8 |
REAR DOOR SCUFF PLATE LH |
| *9 |
REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH |
*10 |
REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH |
| *11 |
REAR OUTER SEAT TRACK BRACKET COVER LH |
*12 |
ROPE HOOK |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

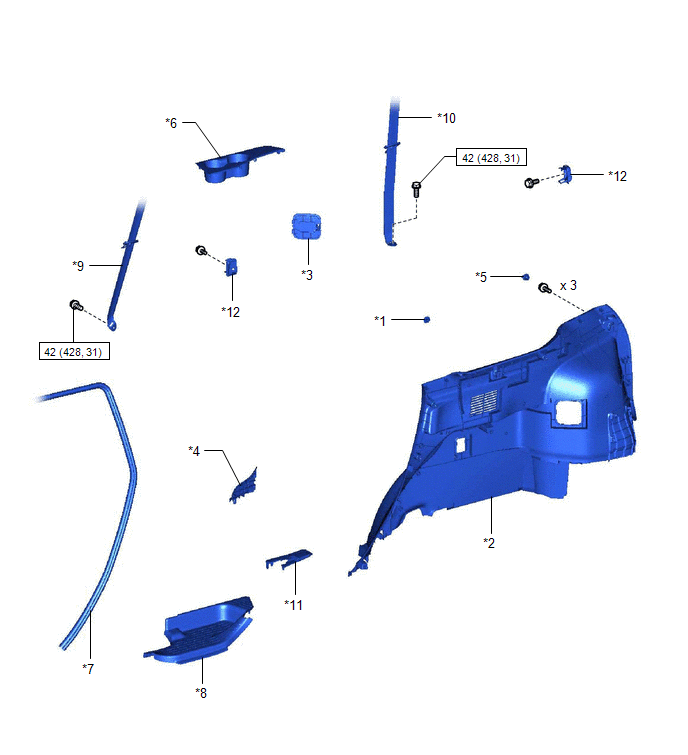

| Callout |
Description |
Callout |
Description |
| *A |
w/o Rear Automatic Air Conditioning System |
*B |
w/ Rear Automatic Air Conditioning System |
| *1 |
COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR |
*2 |
DECK TRIM POCKET COVER |
| *3 |
DECK TRIM SIDE BELT HOLE COVER RH |
*4 |
DECK TRIM SIDE PANEL ASSEMBLY RH |
| *5 |
FRONT DECK SIDE TRIM COVER RH |
*6 |
NO. 1 DECK SIDE TRIM COVER |
| *7 |
NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
*8 |
NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *9 |
REAR DOOR OPENING TRIM WEATHERSTRIP RH |
*10 |
REAR DOOR SCUFF PLATE RH |
| *11 |
REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH |
*12 |
REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH |
| *13 |
REAR OUTER SEAT TRACK BRACKET COVER RH |
*14 |
ROPE HOOK |
| *15 |
SIDE TRIM COVER RH |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

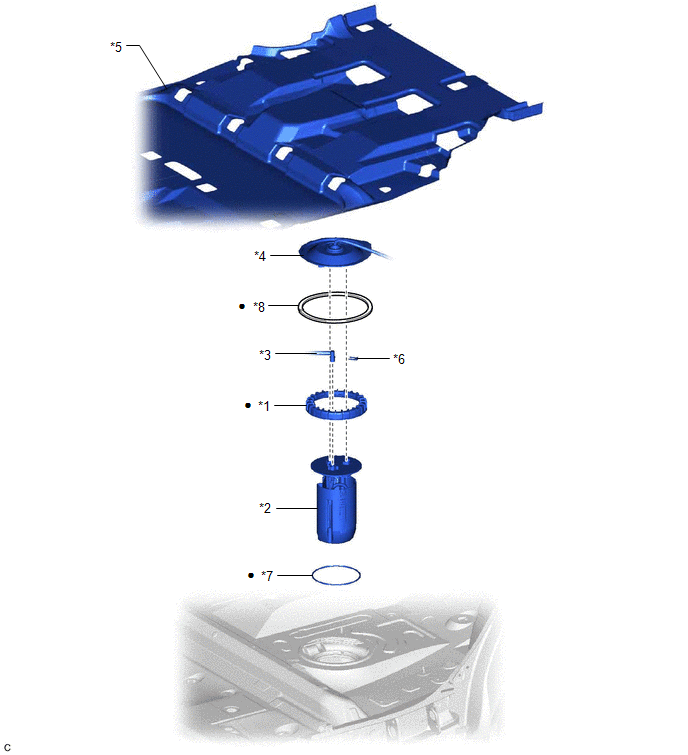

| *1 |
FUEL PUMP GAUGE RETAINER |
*2 |
FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
| *3 |
FUEL TANK MAIN TUBE SUB-ASSEMBLY |
*4 |
REAR FLOOR SERVICE HOLE COVER |
| *5 |
FRONT FLOOR CARPET |
*6 |
TUBE JOINT CLIP |
| *7 |
FUEL SUCTION TUBE SET GASKET |
*8 |
BUTYL TAPE |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

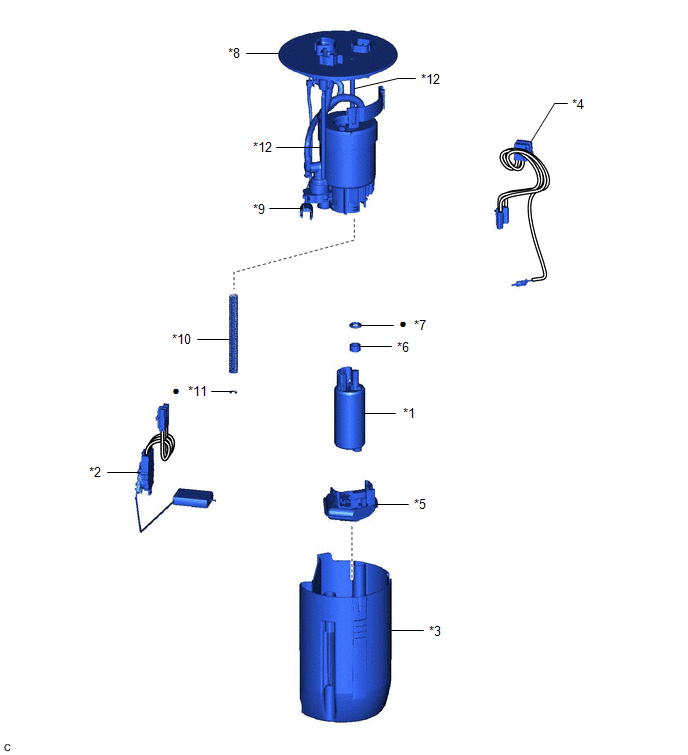

| *1 |
FUEL PUMP |
*2 |
FUEL SENDER GAUGE ASSEMBLY |
| *3 |
NO. 1 FUEL SUB-TANK |
*4 |
FUEL PUMP HARNESS |
| *5 |
FUEL PUMP FILTER |
*6 |
FUEL PUMP SPACER |
| *7 |
O-RING |
*8 |
FUEL SUCTION PLATE SUB-ASSEMBLY |
| *9 |
FUEL PUMP FILTER HOSE |
*10 |
SPRING |
| *11 |
E-RING |
*12 |
FUEL SUCTION PLATE SHAFT |
| • |
Non-reusable part |
- |
- |
