Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE DECK BOARD ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
REMOVE DECK SIDE TRIM BOX LH
Refer to PROCEDURE - Step 3
REMOVE REAR DECK FLOOR BOX
Refer to PROCEDURE - Step 4
REMOVE REAR FLOOR FINISH PLATE
Refer to PROCEDURE - Step 5
REMOVE REAR NO. 2 SEAT ASSEMBLY
Refer to REMOVAL [11/2016 - ]
REMOVE REAR OUTER SEAT TRACK BRACKET COVER LH
Refer to PROCEDURE - Step 4
REMOVE REAR DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 12
DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 9
REMOVE FRONT DECK SIDE TRIM COVER LH
Refer to PROCEDURE - Step 27
DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH
Refer to PROCEDURE - Step 11
REMOVE NO. 2 DECK SIDE TRIM COVER
Refer to PROCEDURE - Step 29
DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH
Refer to PROCEDURE - Step 14
REMOVE DECK TRIM POCKET COVER (for LH Side)
Refer to PROCEDURE - Step 32
REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)
Refer to PROCEDURE - Step 33
REMOVE ROPE HOOK (for LH Side)
Refer to PROCEDURE - Step 34
REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
Refer to PROCEDURE - Step 35

REMOVE FUEL PUMP CONTROL ECU

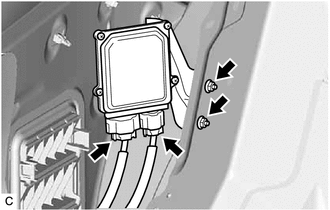

Disconnect the 2 fuel pump control ECU connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 nuts and fuel pump control ECU from the vehicle body.
NOTE:
Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.

REMOVE FUEL PUMP CONTROL ECU BRACKET

Remove the 2 bolts and fuel pump control ECU bracket from the fuel pump control ECU.
