Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
DECK BOARD ASSEMBLY |
*2 |
DECK SIDE TRIM BOX LH |
| *3 |
NO. 3 DECK BOARD SUB-ASSEMBLY |
*4 |
REAR DECK FLOOR BOX |
| *5 |
REAR FLOOR FINISH PLATE |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

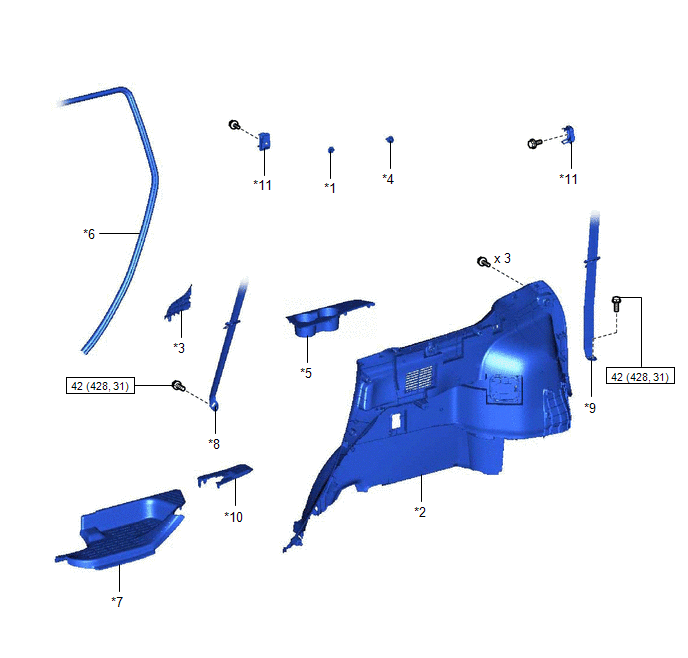

| Callout |
Description |
Callout |
Description |
| *1 |
DECK TRIM POCKET COVER |
*2 |
DECK TRIM SIDE PANEL ASSEMBLY LH |
| *3 |
FRONT DECK SIDE TRIM COVER LH |
*4 |
NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *5 |
NO. 2 DECK SIDE TRIM COVER |
*6 |
REAR DOOR OPENING TRIM WEATHERSTRIP LH |
| *7 |
REAR DOOR SCUFF PLATE LH |
*8 |
REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH |
| *9 |
REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH |
*10 |
REAR OUTER SEAT TRACK BRACKET COVER LH |
| *11 |
ROPE HOOK |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

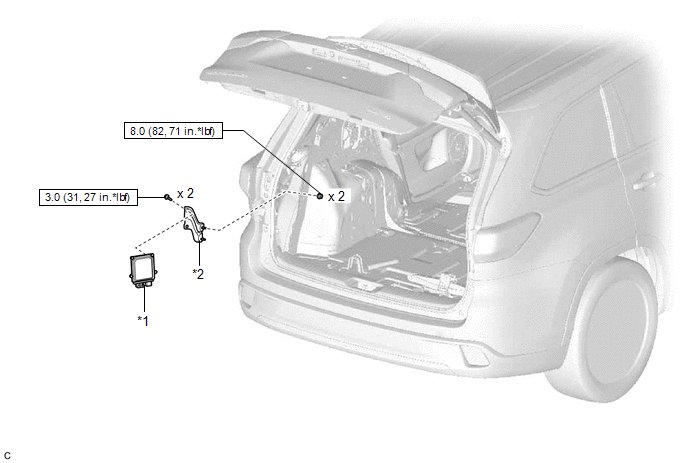

| Callout |
Description |
Callout |
Description |
| *1 |
FUEL PUMP CONTROL ECU |
*2 |
FUEL PUMP CONTROL ECU BRACKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
