Removal [11/2016 - ]: Procedure

WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  2. REMOVE FUEL SENDER GAUGE ASSEMBLY

    See step  2

  3. REMOVE FUEL SUCTION PLATE SUB-ASSEMBLY

    See step  2

  4. REMOVE FUEL PUMP FILTER

    See step  3

  5. REMOVE FUEL MAIN VALVE ASSEMBLY
    1. GTY669074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the fuel main valve assembly (for Low Pressure).

      1. Remove the clip from the fuel filter.
      2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel filter.

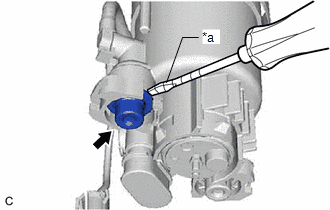

        GTY685550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        NOTE:
        • Pull out the fuel main valve assembly carefully because the O-rings are firmly installed between the fuel main valve assembly and fuel filter.
        • Do not damage the fuel filter.
      3. Remove the 2 O-rings from the fuel main valve assembly.
        GTY652718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 O-ring

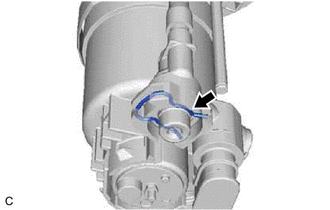

    2. GTY669085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the fuel main valve assembly (for High Pressure).

      1. Remove the clip from the fuel filter.
      2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel filter.
        GTY625789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        NOTE:
        • Pull out the fuel main valve assembly carefully because the O-rings are firmly installed between the fuel main valve assembly and fuel filter.
        • Do not damage the fuel filter.
      3. Remove the 2 O-rings from the fuel main valve assembly.
        GTY652718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 O-ring
