Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

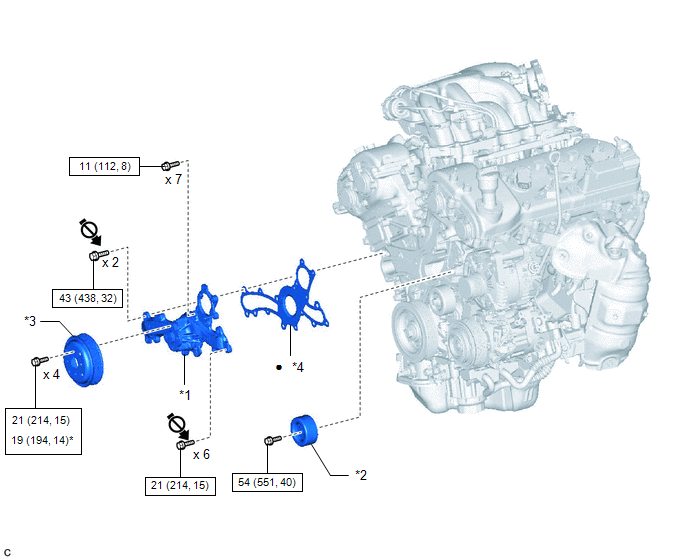

| Callout | Description | Callout | Description |
| *1 | ENGINE WATER PUMP ASSEMBLY | *2 | NO. 2 IDLER PULLEY SUB-ASSEMBLY |
| *3 | WATER PUMP PULLEY | *4 | WATER PUMP GASKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with a union nut wrench | |
| • | Non-reusable part | Do not apply lubricants to the threaded parts |
