Components [11/2016 - ]: Illustration
WARNING: This page is about a different car, the 2019 Toyota Highlander, 2018 Toyota Highlander, and 2017 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Description | Callout | Description |

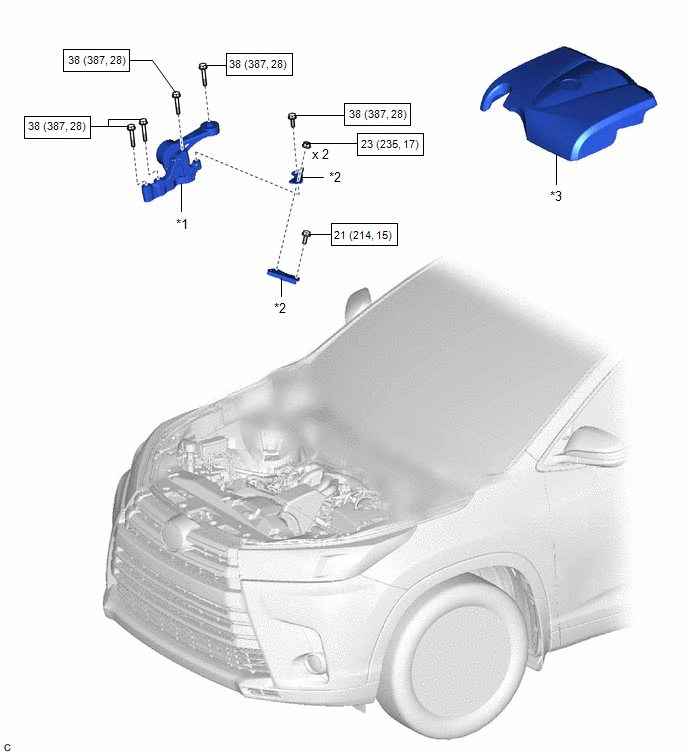

| *1 | ENGINE MOVING CONTROL ROD BRACKET | *2 | NO. 2 ENGINE MOUNTING STAY RH |
| *3 | V-BANK COVER SUB-ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| Callout | Description | Callout | Description |

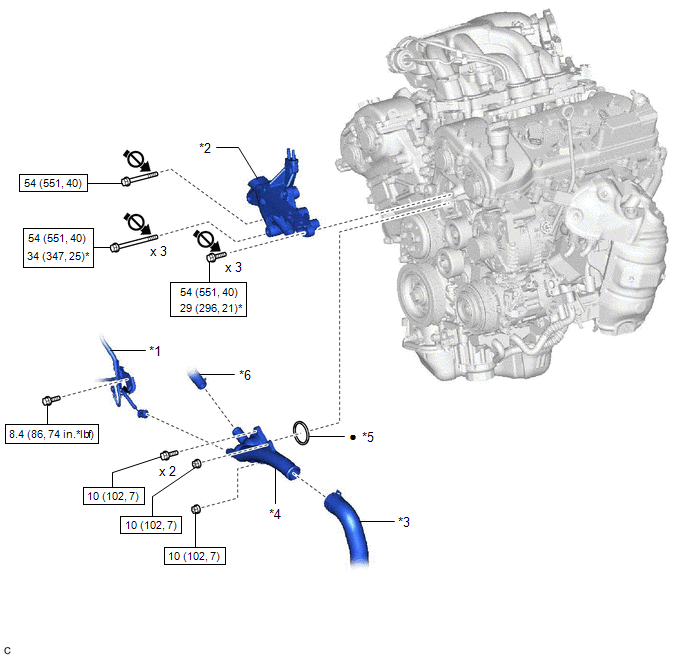

| *1 | ENGINE WIRE | *2 | FRONT NO. 1 ENGINE MOUNTING BRACKET LH |
| *3 | NO. 2 RADIATOR HOSE | *4 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
| *5 | GASKET | *6 | WATER BY-PASS HOSE |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST | |
| • | Non-reusable part | Do not apply lubricants to the threaded parts |
